2JL30-Dev, 2.4 GHz ISM Surface Mount Compact Cerami

More information

Stock
Out of stock
Delivery time
please contact us for more information
Part number
2JL30
Manufacturer / supplier
2J Antennas
Datasheet
View datasheet
€ 14.87 excl VAT
Contact us Technical support Quotation request

Product specifications

2JL30

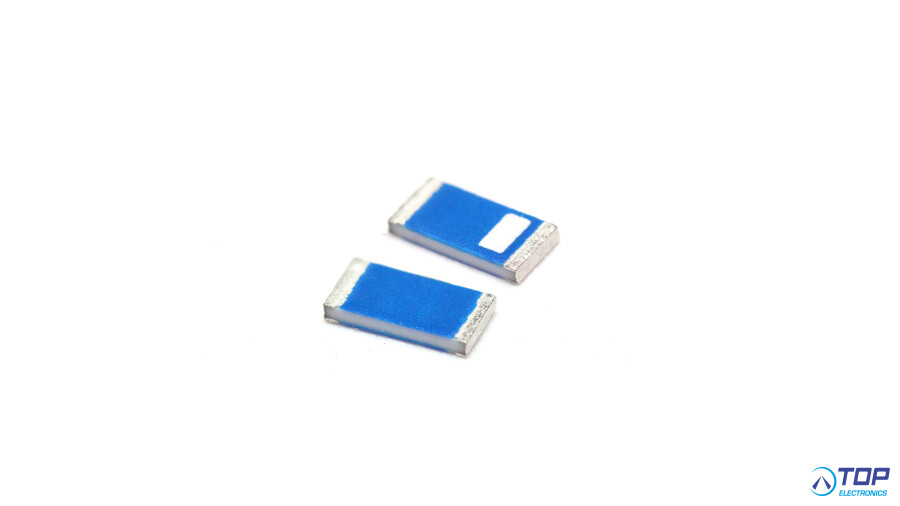

2.4 GHz ISM Surface Mount Compact Ceramic Antenna

general specification
2.4 GHz ISM- 2410-2490MHz
Surface Mount
Easy to Integrate
Compact Size
Ceramic Material
Ground Plane Dependent
Dimensions 3.2 x 1.6 x 0.5 mm

-StandardsBand (MHz) - WiFi, BT, ZigBee, ISM,
-Frequency (MHz) - 2400
-Return Loss (dB) - 2410-2490
-VSWR ~-21.5
-Efficiency (%) ~1.3:1
-Peak Gain (dBi) ~63.3
-Average Gain (dB) ~1.1
-Impendance (Ohm) ~-2.0
-Polarisation 50
-Radiation Pattern Linear
-Max. Input Power 25

--- 2J antennas----
