Product specifications

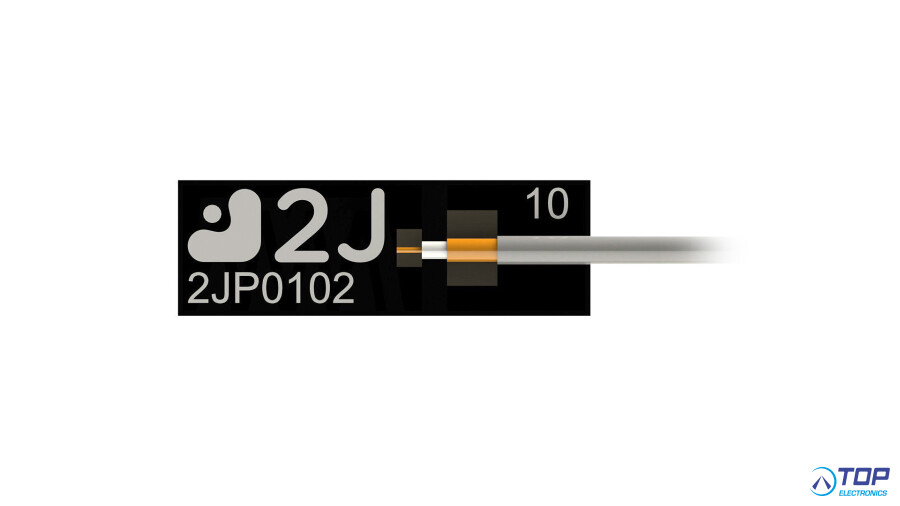

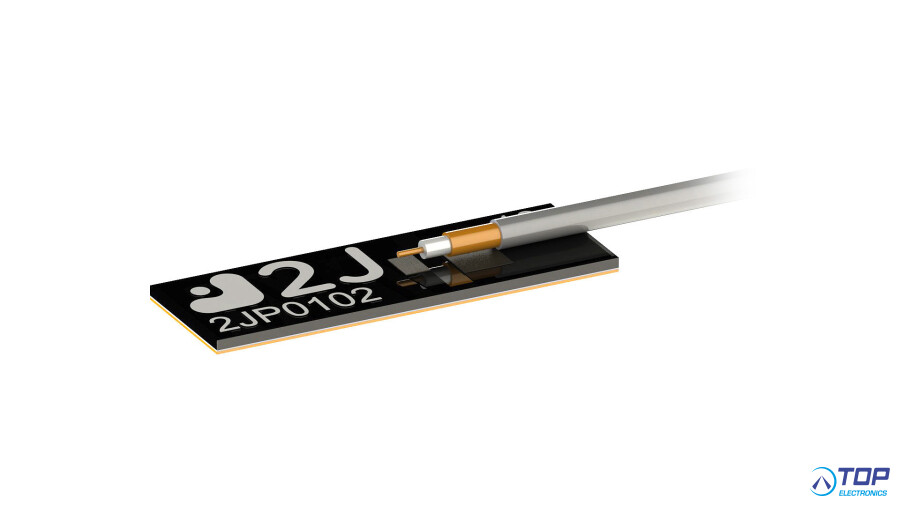

2JF0102P
2.4/5.0 GHz ISM Flexible ultra-thin PCB Adhesive Antenna
General Specification
Frequency: 2.4-5.0GHz/WiFi/Sigfox/LoRa/LPWA/BT/ZigBee/RFID/ISM
Mounting: Adhesive Mount Rigid
Dimensions (mm): 16.4 x 5.4 x 0.4
Operating temperature: -40 °C to +85 °C
Standard colors: Black
100mm, 1.37mm cable
Antenna and electrical specifications
2.4/5.0 GHz ISM
Standards: WiFi, BT, ZigBee, ISM
Frequency: 2410-2490, 4920-5925
VSWR: ~2.4:1, ~2.2:1
Efficiency (%): ~53, ~64
Peak Gain (dBi): ~3.2, ~5.0
Impendance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 10
