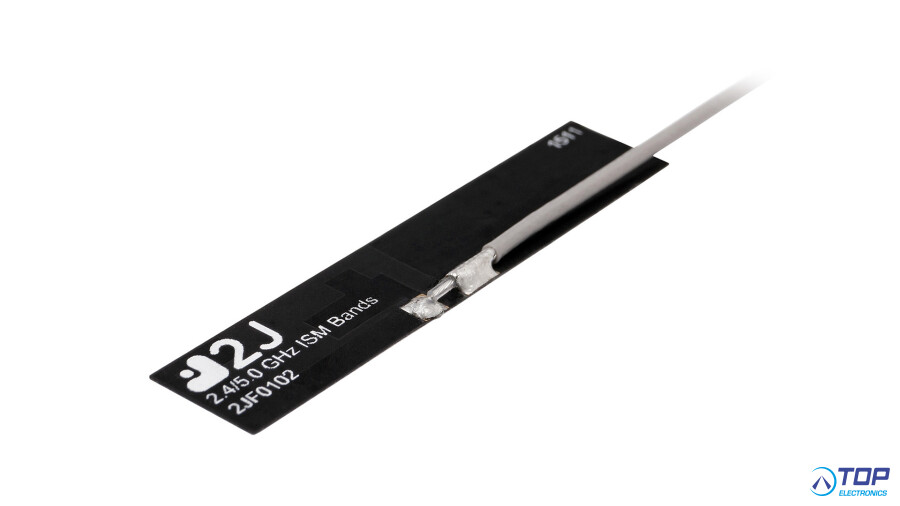

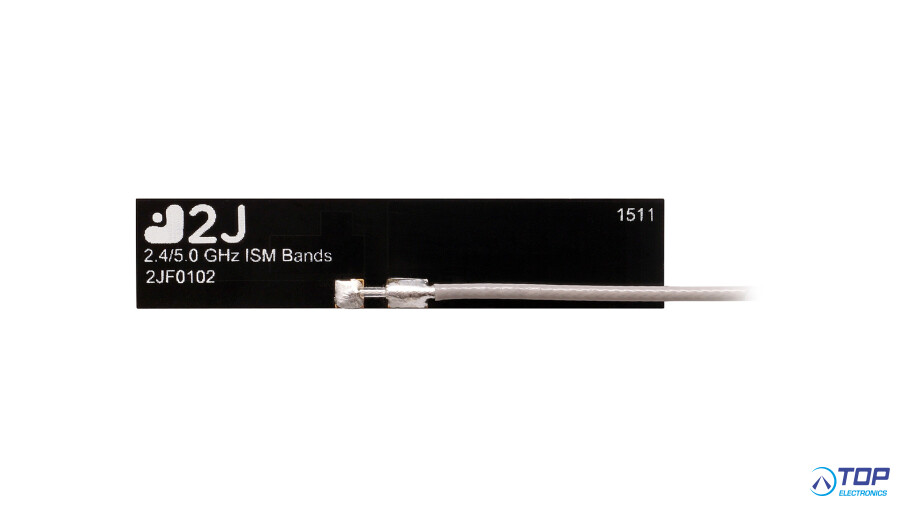

2JF0102P, 2.4 / 5.0GHz, internal antenna, U.FL

More information

Stock
In stock
Delivery time
please contact us for more information
Part number
2JF0102P
Manufacturer / supplier
2J Antennas
Datasheet
View datasheet
€ 5.50excl VAT

Product specifications

2JF0102P
2.4/5.0 GHz ISM Flexible ultra-thin PCB Adhesive Antenna

General Specification
Frequency: 2.4-5.0GHz/WiFi/Sigfox/LoRa/LPWA/BT/ZigBee/RFID/ISM
Mounting: Adhesive Mount Flexible
Dimensions (mm): 39.6x 8.4 x 0.1
Operating temperature: -40 °C to +85 °C
Standard colors: Black

Antenna and electrical specifications
2.4/5.0 GHz ISM
Standards: WiFi, BT, ZigBee, ISM
Frequency: 2410-2490, 4920-5925
VSWR: ~1.2:1, ~1.4:1
Efficiency (%): ~76, ~82
Peak Gain (dBi): ~2.2, ~3.8
Impendance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
