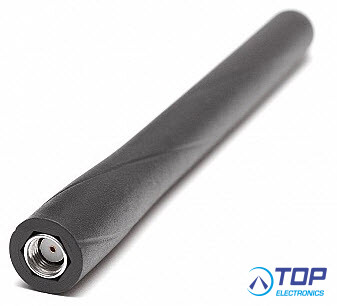

2J0902-C115N, 2.4 / 5.0GHz, external antenna,SMA(M) RP

More information

Stock
10 pcs
Delivery time
please contact us for more information
Part number
2J0902-C115N
Manufacturer / supplier
2J Antennas
Datasheet
View datasheet
€ 6.05 excl VAT
Contact us Technical support Quotation request

Product specifications

2J0902-C115N
Dual Band Wifi ISM Waterproof Antenna

General Specification
Connections: 1
Frequency: 2.4-5.0GHz/WiFi/Sigfox/LoRa/LPWA/BT/ZigBee/RFID/ISM
Mounting: Connector Mount
Dimensions (mm) Ø 13.2 × 115.7
Operating temperature: -40 °C to +85 °C
Certificates IP67
Standard color: Black

Connection 1
2.4/5.0 GHz ISM
Standards WiFi, BT, ZigBee, ISM
Frequency 2410-2490, 4920-5925
VSWR ~1.2:1, ~1.7:1
Efficiency (%) ~70.3, ~55.7
Peak Gain (dBi) ~2.0, ~2.2
Impendance (Ohm) 50
Radiation Pattern Omni-Directional
Polarisation Linear
Max. Input Power (W) 25
