Product specifications
KD101WXFLD021-01

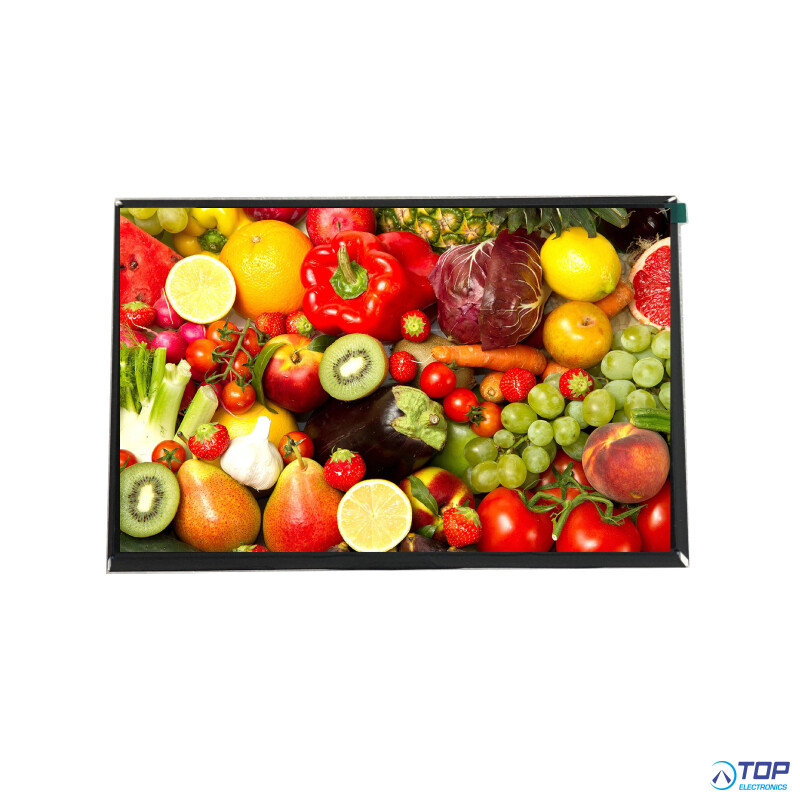

Startek 10.1" IPS Display
1.LCD name：10.1 inch 1280*800 full viewing angle LVDS interface high brightness TFT LCD module
2.Part No.：KD101WXFLD021-01
3.Compatible part No.:
4.Size：10.1inch
5.Display type：IPS
6.Touch panel：NO TP
7.Display colors: 65K/262K/16.7M
8.Resolution (pixels): 1280(RGB)*800
9.Pixel pitch：0.1692(H)*0.1692(V)
10.Display mode：Transmissive, Normally Black
11.Overall size: 229.06*148.7*2.56
12.Active Area: 216.96*135.60
13.Luminance: 650 nits
14.Contrast：1000
15.Interface type: LVDS
16.IC: EK79202D_A
17.Pin NO.: 40Pin
18.Connecting type：plugging type
19.Input voltage: 3.3V
20.Backlight type and color: LED backlight, White
21.Backlight: I=260mA, V =3.3V
22.Package：Antistatic bag, Carton
23.LED Life span: 50000h
24.Operating temperature range: -20----70 °C
25.Storage Temperature range: -30----85°C
26.Certification of registration: ISO9001 ISO13485 IATF16949
27.Compliant: RoHS
