Product specifications
KD101WSFPD036

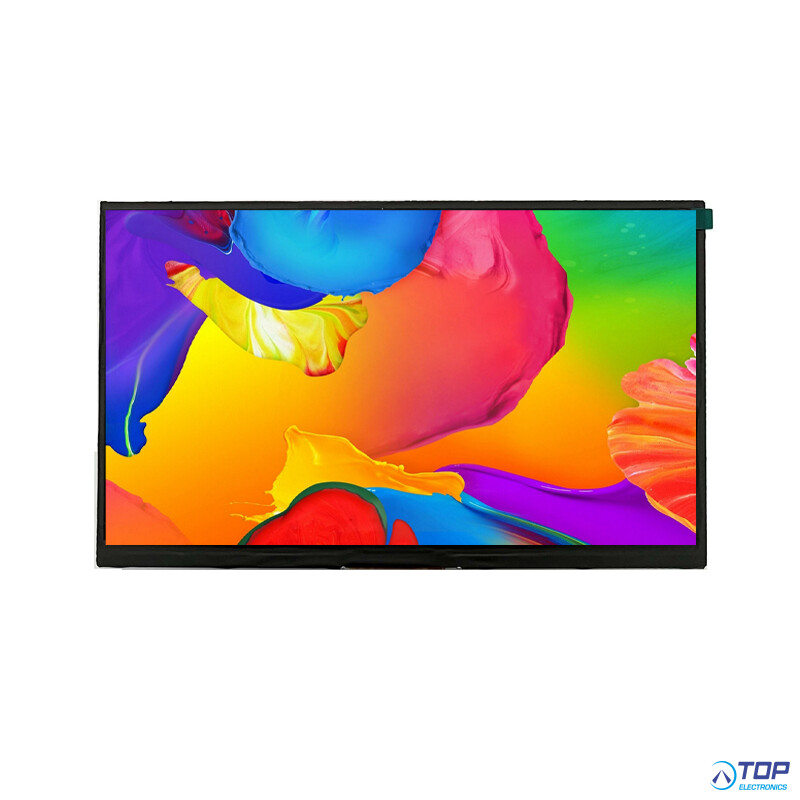

Startek 10.1" IPS Display
1.LCD name: 10.1 inch IPS TFT LCD 1024*600 full viewing angle RGB interface tft lcd panel
2.Part No.: KD101WSFPD036
3.Other model Part No.: NO
4. Compatible part No.: NO
5. Display mode: IPS TFT
6. Display colors: 16.7M
7. Resolution (pixels): 1024(RGB)*600
8. Pixel pitch: 0.2175(H)*0.2088(V) mm
9. Viewing direction: ALL
10. Controller IC: EK73215& EK79001
11. Display mode: Transmissive/ Normally Black
12. Overall size: 235.1*143.2*2.8mm
13. Active Area: 222.72(H)*125.28(V)
14. Luminance: 550cd/m2
15. Contrast: 800
16. Interface type: RGBinterface
17. Number of pin: 50pins
18. Pin pitch: 0.5
19. Connecting type: adaptor type
20. Input voltage: 3.3V
21. Backlight type and color: LED backlight/white
22. Life span: 30000h
23. Operating temperature range: -20--70°C
24. Storage temperature range: -30—80°C
