YB-TG128128S04A-N-A0, 1.44", Parallel, 160nits

More information

Stock
Out of stock
Delivery time
please contact us for more information
Part number
YB-TG1280800S06B-N-A0
Manufacturer / supplier
Yeebo
Datasheet
View datasheet
Contact us

Product specifications

YB-TG128128S04A-N-A0

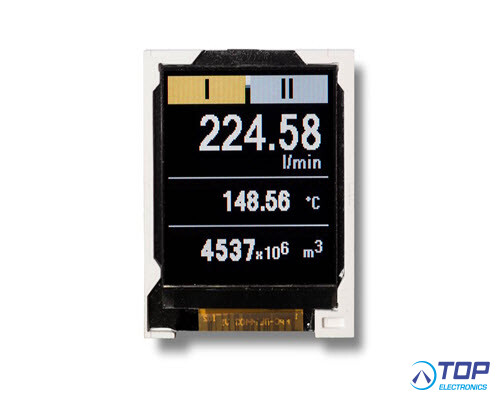

Display TFT 1.44", Parallel,160nits

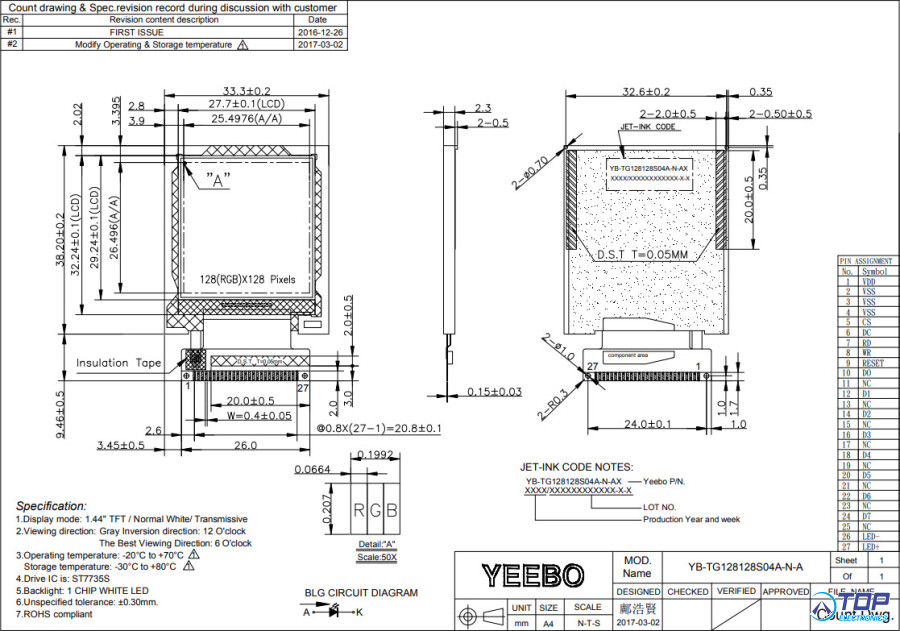

General Specification
Module Size: 33.3 (W) *38.2(H) * 2.3(T) mm
Module Size(With FPC): 33.3 (W) * 47.66(H) * 2.3(T) mm
Display Size(Diagonal): 1.44 inch
Display Format: 128(RGB)* 128 Pixels
Active Area: 25.4976(W) * 26.496 (H) mm
Pixel Pitch: 0.1992* 0.207 mm
LCD Type: TFT (262K)/ Transmissive / NW
View Angle(Gray Inversion): 12 O’clock
The Best Viewing Direction: 6 O’clock
Controller IC: ST7735S
Interface: Parallel
Brightness: 160 nits
Weight: 4.2g

--- YEEBO product ---
