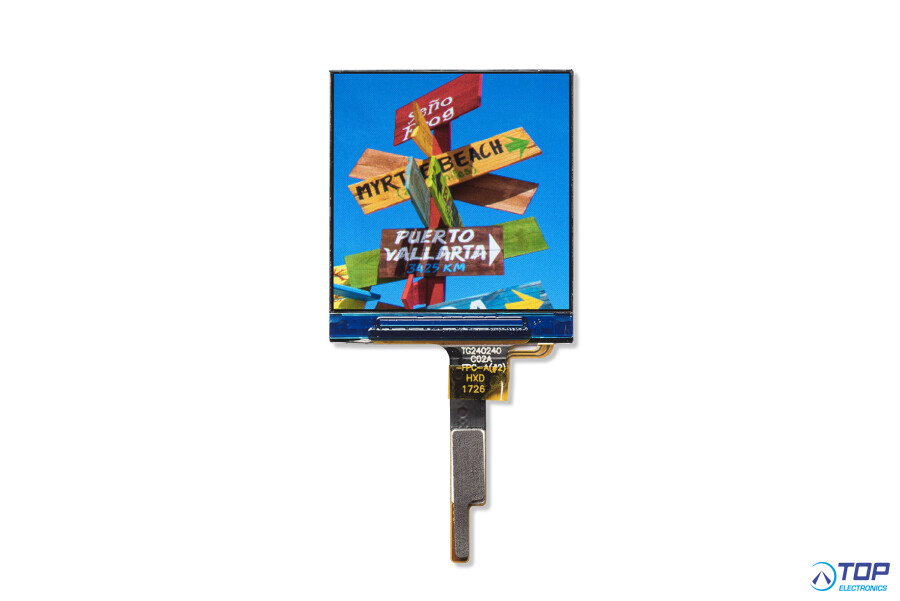

YB-TG240240C02A-N-A1, 1.3" IPS, Serial, 320nits

More information

Stock
Out of stock
Delivery time
please contact us for more information
Part number
YB-TG240240C02B-C-A
Manufacturer / supplier
Yeebo
Datasheet
View datasheet
Contact us

Product specifications

YB-TG240240C02A-N-A1
Display TFT 1.3", IPS, Serial, 320nits

General Specification
Module Size: 26.0 (W) * 29.15 (H) * 1.5 (T) mm
Module Size(With FPC): 26.0 (W) * 52.17 (H) * 1.5 (T) mm
Display Size(Diagonal): 1.3 inch
Display Format: 240(RGB)*240 Pixels
Active Area: 23.4(W) * 23.4 (H) mm
Pixel Pitch: 0.0975 * 0.0975 mm
LCD Type: TFT (262K) / Transmissive / Normally Black
View Angle: Free (IPS)
Controller IC: ST7789H2
Interface: Serial
Brightness: 320 nits
Weight: 2.2g

--- YEEBO product ---
