Product specifications

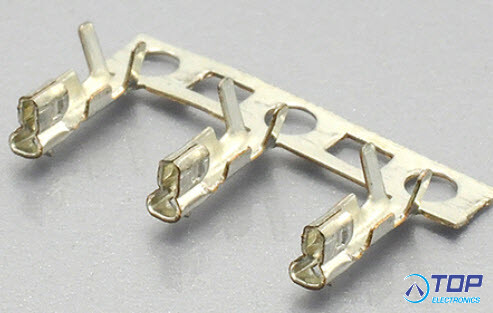

SWTB-T2001-1
Reel: 10K pcs
Kan worden geleverd op geneden reel
◆SPECIFICATIONS:
●Current rating: 2A AC, DC
●Voltage rating: 100V AC,DC
●Temperature range: -25°C ~ +85°C
●Insulation resistance: 1000M Ω Min.
●Withstanding voltage: 800V AC/ minute.
●Contact resistance: 20mΩ Max
Applicable wires:
AWG #28~#24
Insulation O.D.: 1.5mm Max
Simular to JST PH 2.0
