Product specifications

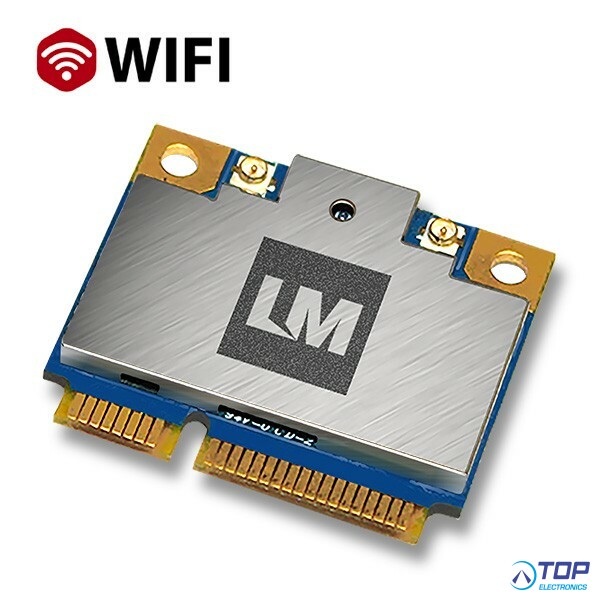

The LM511 WiFi PCIe Minicard, fully supports IEEE 802.11 e and i standards.
It supports up to 866.7Mbps high-speed wireless network connections and is designed to provide excellent performance with low power consumption.
It is designed to be a highly cost-effective module that offers superior performance, better power management applications above its competitors.
Features:
- WiFi 802.11 ac (2x2 MIMO technology improves active throughput and range over existing 802.11 a/b/g/n/ac products)
- Operates in 2.4 GHz and 5 GHz Frequency bands
- PCI express & IPEX receptical
- Linux, Windows XP, Vista, 7, 8.1, 10 compatible
- Up to 866.7 Mbps High Speed Data Transfer Rate
- 802.11e-compatible bursting and I standards
- BPSK, QPSK, 16 QAM, 64 QAM, 256 QAM, DBPSK, DQPSK and CCK modulation schemess
- WEP, TKIP, and AES hardware encryption Schemes
- Support soft AP for Windows XP, Vista and Windows 7
- Data rates of up to 173.3 Mbps for 20 MHz channels and 400 Mbps for 40 MHz channels, and 866.7 Mbps for 80 MHz channels
- RoHS, REACH and WEEE compliant
Shield option:
This card is also offered with or without a sheilding cover. Please speak with our team for guidance when looking at this option.
- LM Technologies product -
