Product specifications

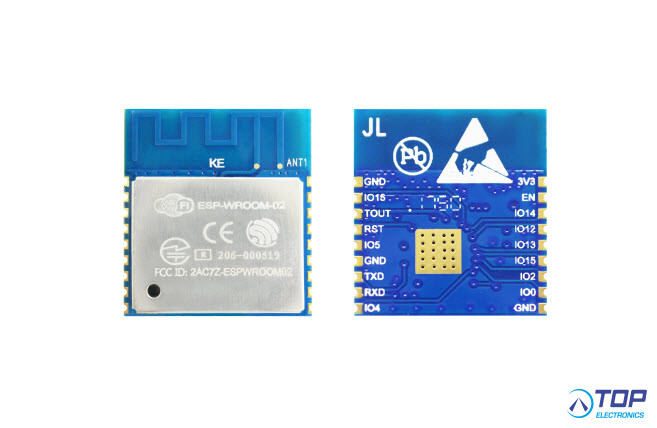

Wireless ESP-WR00M-02
Wi-Fi module Wi-Fi IEEE 802.11b/g/n at 2.4 GHz
ESP-WROOM-02 is a WiFi Module that integrates TCP/IP network stacks, 32-bit low power micro-controller (MCU), and 10-bit ADC with HSPI, SDIO, UART, PWM, I2C, and I2S interfaces. The module features high integration level and low power consumption, and can provides wireless internet connection for a wide range of embedded devices. It can be easily integrated into resource-limited devices due to its small footprint of only 18mm x 20mm.
Apart from using the ESP8266EX chipset, this module also integrates an SPI flash with 16Mbyte capacity, and SOP8-150mil package. The flash can be used to store user programs and firmware.
Features
> IEEE 802.11b/g/n at 2.4 GHz
> Integrated low power 32-bit MCU
> Integrated 10-bit ADC
> Integrated TCP/IP protocol stack
> Integrated TR switch, balun, LNA, power amplifier and matching network
> Integrated PLL, regulators, and power management units
> Various interfaces available, including SDIO, HSPI, UART, I2C, I2S, IR, PWM, GPIO, etc.
> Supports antenna diversity
> Deep sleep power <10uA, Power down leakage current < 5uA
> Wake up and transmit packets in < 2ms
> Standby power consumption of < 1.0mW (DTIM3)
> +20dBm output power in 802.11b mode
> Operating temperature range -40°C ~ 125°C
> FCC, CE, and TELEC certified
Solutions
> Support Station, softAP, and STA+softAP operation modes
> Support security protocols WPA/WPA2
> Support Transmission control protocol (TCP) and User Datagram Protocol (UDP)
> Support Wi-Fi Protected Setup (WPS) for easy setup and configuration
> Support mesh networking
> Support Smart Link Function for both Android and iOS devices
> Provide customers with HDK, SDK, cloud, and APP
Application
> Home automation and home security
> Smart lights and plugs
> Home appliances
> Sensors and detectors
> Security alarms
> Remote controls and toys
> Monitors and scales
> Mesh Network
> Industrial Wireless Control
> Wearable Electronics
> WiFi Location-aware Devices
> Security ID Tags
> WiFi Position System Beacons
