Product specifications

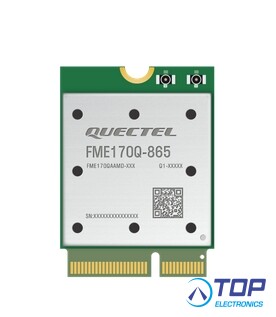

Quectel - FME170Q-865
2.4/ 5/ 6 GHz Wi-Fi Bands - 2 × 2 MIMO DBS HBS - Wi-Fi 7 & Bluetooth 5.4 Module
FME170Q-865 is a highly integrated module supporting Wi-Fi 7 and Bluetooth 5.4. NCM865 supports simultaneous operation on 2.4 GHz + 5 GHz, 2.4 GHz + 6 GHz, 5 GHz + 5 GHz, and 5 GHz + 6 GHz. With 4K-QAM and 320 MHz bandwidth, NCM865 achieves a maximum data rate of 5.8 Gbps. Meanwhile, it supports ultra-low latency for real-time response.
Multi-link operation (MLO) is one unique feature that allows routers to use multiple wireless bands and channels simultaneously to connect to a Wi-Fi 7 client. FME170Q-865 supports MLO and brings faster data rates, much lower latency and higher network reliability to users.
FME170Q-865 also integrates dual-mode Bluetooth and supports LE audio, as well as 2 Mbps Bluetooth low energy BLE) and BLE long range. High data rates, lower latency and enhanced network reliability makes FME170Q-865 suitable for laptop applications.
FEATURES:
- 2.4 GHz / 5 GHz / 6 GHz Wi-Fi bands and Bluetooth 5.4
- High band simultaneous (HBS)
- Dual band simultaneous (DBS)
- 4096 QAM
- Multi-link operation
- Ultra-low latency
- Multi-user multiple input multiple output (MU-MIMO)
ORDERING CODES:
- Wi-Fi 7 module

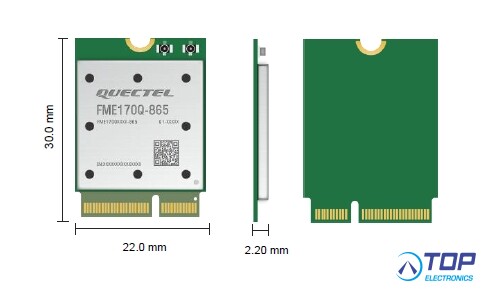

- 22.0 mm × 30.0 mm × 2.20 mm
- 2.57 g
- Operating temperature range: -10 °C to +65 °C
- Quectel Wireless Solutions product -
