Product specifications

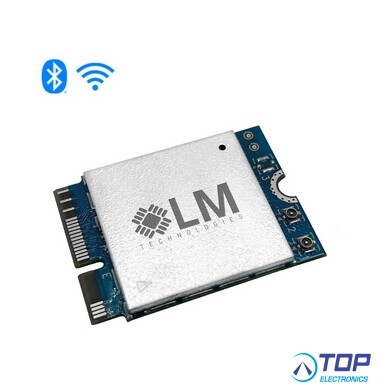

Wi-Fi 6 (802.11ax) and Bluetooth® 5.2 Dual Mode Industrial M.2 Card
The LM514 module is a high-performance and highly intergrated Wi-Fi 6 solution that offers coexistence for Bluetooth® Dual Mode and Wi-Fi operations, allowing the host computer to wirelessly communicate with other Bluetooth and Wi-Fi enabled devices. The LM514 is ideal for industrial applications, delivering both high throughput and low power consumption. The compact form factor saves valuable space within your product, making it ideal for laptops, desktops, medical devices and industrial PCs. The LM514 supports IEEE 802.11a/b/g/n/ac/ax and Bluetooth 2.0, 2.1, 3.0, 4.0, 4.1, 4.2, 5, 5.1 and 5.2 standards and is compatible with Linux (Kernel 5.4), Windows 10 – 11 platforms
Features:
- Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
- Bluetooth® 5.2 (Backwards compatible with all previous Bluetooth versions)
- WPA, WPA2, WPA3, 802.1x and WEP (64bit & 128bit) encryption schemes
- MU-MIMO and data rate up to 1201Mbps
- Dual Mode simultaneous LE and BR/EDR support
- PCIe Interface for Wi-Fi, USB Interface for Bluetooth
- Operating temperature: -30°C to +85°C
- Supports Bluetooth adaptive power management
- 2.4~2.484 GHz and 5.0~5.8 Ghz
- M.2 2230 (A-E) Key form factor
- 2 x IPEX connector receptacle
- 30mm x 22mm x 2.25mm
- Linux and Windows 10 – 11 compatible
Ordering Code:
LM514-5140 - MOD 802.11ax BT5.2 M.2 2T2R IPEX PCS - ETSI
- LM Technologies product -
