Product specifications

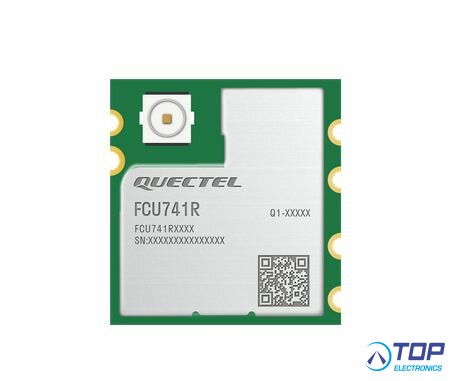

Quectel - FCU741R
Wi-Fi 4 Module - Ultra-compact LCC Package

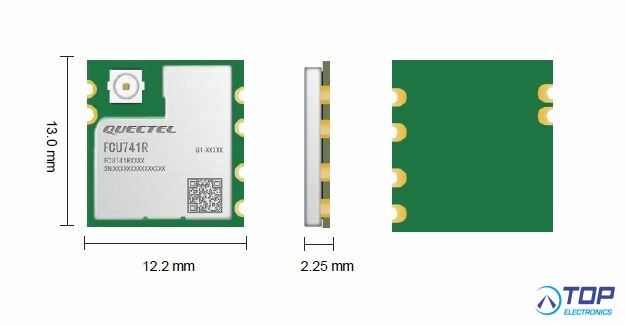

FCU741R is a high-performance Wi-Fi 4 module launched by Quectel, supporting 2.4GHz and 5GHz frequencies. It can be used for WLAN connection. With an ultra-compact size of 13.0mm × 12.2mm × 2.25mm, the module optimizes the size and cost for end-products, which fully meets the demands of size-sensitive applications. Designed with a reliable USB 2.0 interface, the module can ensure high sensitivity in interference environments, and the maximum data rate can be up to 150Mbps.
The module supports two antenna designs: first generation RF coaxial connector and pin antenna interface. Surface-mount technology (SMT) makes FCU741R an ideal solution for durable and rugged designs. The low profile and small size of LCC package ensure that it can be easily embedded into size-constrained applications and provide reliable connectivity with these applications. The advanced package and the laser-engraved label with better heat dissipation and indelible markings allow for large-scale automated manufacturing which has strict requirements on cost and efficiency.
FEATURES:
- Wi-Fi 4 module, supporting 2.4GHz/5GHz Wi-Fi bands
- USB 2.0 interface which features higher data transmission rate and low power consumption
- Faster time-to-market: simple design minimizes design-in time and development efforts
- Wide operating temperature range: -20°C to +70°C
ORDERING CODES:
FCU741RACMD - 1st generation RF coaxial connector
FCU741RADMD - Pin antenna interface
- Quectel Wireless Solutions product -
