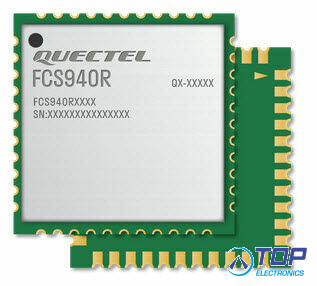

FCS940R - Wi-Fi 4 & Bluetooth 5.0 Module Ultra-compact LCC Package
OVERVIEW:
FCS940R is a high-performance 2.4 GHz Wi-Fi 4 and Bluetooth 5.0 module in LCC package with an ultra-compact form factor of 12.0 mm × 12.0 mm × 2.0 mm. It enables seamless WLAN and Bluetooth connectivity and is designed to optimize end-product size and cost. It incorporates reliable SDIO 2.0 and HS-UART interfaces to provide robust WLAN capability.
FCS940R is a Bluetooth 5.0 compliant module that supports dual mode (BR/EDR + Bluetooth Low Energy). It enables scatternet topology and active links in both slave and master modes for BR/EDR. In Bluetooth Low Energy mode, it supports multiple functions, such as monitoring, broadcasting, scanning, and allows active links in master mode. Therefore, this module offers a comprehensive solution for high throughput performance in wireless LAN and Bluetooth applications.
Surface-mount technology (SMT) makes FCS940R an ideal solution for durable and rugged designs. The low profile and compact size of LCC package enable seamless integration into size-constrained applications, ensuring reliable connectivity. The advanced package design, combined with a laser-engraved label, improved heat dissipation and indelible markings allow for large-scale automated manufacturing, meeting stringent cost and efficiency
requirements
KEY FEATURES:
- Single band (2.4 GHz) Wi-Fi and Bluetooth 5.0
- SDIO 2.0 interface that supports higher data transmission rate and enables lower power consumption
- Faster time-to-market: simple design minimizes design-in time and development efforts
- Wide operating temperature range: 0 °C to +70 °C / -20 °C to +80 °C (optional)
SUMMERY:
- Wi-Fi 4 and Bluetooth 5.0 module
- Max. data rate of 150 Mbps
- LCC form factor

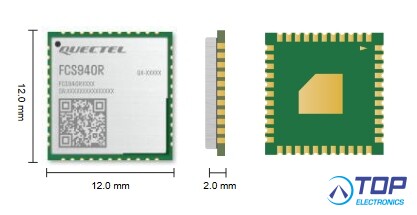

- 12.0 mm × 12.0 mm × 2.0 mm
- 0.53 g
- Operating temperature range of 0°C to + 70°C / -20°C to + 80°C (optional)
QUECTEL FCS940R VARIANTS:
- FCS940R: Operating Temperature: 0 °C to +70 °C
- FCS940R: Operating Temperature: -20 °C to +80 °C
