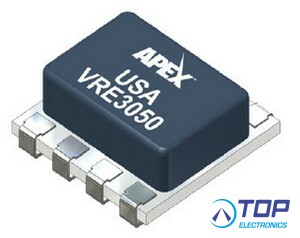

VRE3050JS, Volt Reference +5.0V,±0.5mV,-40ºC/85ºC

More information

Stock
In stock
Delivery time
if not in stock: 12+ weeks
Part number
VRE3050JS
Manufacturer / supplier
Apex Microtechnology
Datasheet
View datasheet
€ 127.71 excl VAT
Quantity
Unit price
From 5 pcs€ 123.88
From 25 pcs€ 117.49

Product specifications

VRE3050JS - Precision Voltage Reference, +5.0V, ±0.5mV, -40ºC to +85ºC

The VRE3050 is a low cost, high precision 5 V reference that operates from +10 V. The device features a buried zener for low noise and excellent long term stability.
Packaged in an 8-pin SMT, the device is ideal for high resolution data conversion systems. The device provides ultrastable +5 V output with ±0.5mV (.01%) initial accuracy and a temperature coefficient of 0.6 ppm/°C.
This improvement in accuracy is made possible by a unique, patented multipoint laser compensation technique. Significant improvements have been made in other performance parameters as well, including initial accuracy, warm-up drift, line regulation, and long-term stability, making the VRE3050 series the most accurate reference available.
For enhanced performance, the VRE3050 has an external trim option for users who want less than 0.01% initial error. For ultra low noise applications, an external capacitor can be attached between the noise reduction pin and the ground pin.

APPLICATIONS
The VRE3050 is recommended for use as a reference for 14, 16, or 18 bit data converters which require an external precision reference. The device is also ideal for calibrating scale factor on high resolution data converters. The VRE3050 offers superior performance over monolithic references.

FEATURES
• +5V Output, ± 0.5 mV
• Temperature Drift: 0.6 ppm/ºC
• Low Noise: 3 μVP-P (0.1Hz-10Hz)
• Low Thermal Hysterisis: 1 ppm Typical
• ±15mA Output Source and Sink Current
• Excellent Line Regulation: 5 ppm/V Typical
• Optional Noise Reduction and Voltage Trim
• Industry Standard Pinout: 8-pin Surface Mount Package

- APEX Microtechnology product -
