Product specifications
Quectel UC20-TE-A

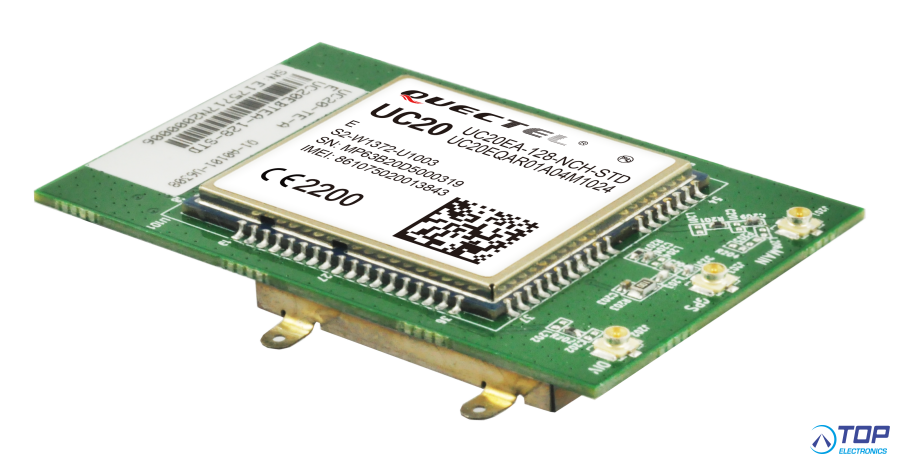

UC20-G module on adaptor board (Global)
UC20 is the latest Quectel UMTS/ HSPA+ module offering a maximum data rate of 14.4 Mbps downlink and 5.76 Mbps uplink. UC20 is designed to provide customers with global network coverage on the connectivity of HSPA+/ WCDMA. It can also be fully backward compatible to existing EDGE and GSM/ GPRS networks through multi-band combination of quad band WCDMA and quad band GSM.
The tiny profile of 32.0x29.0x2.5mm in cost optimized SMT form factor and highly integration level enable integrators and developers to easily design their applications and truly benefit from the module’s small size, low power consumption and mechanical intensity. Its advanced LCC package allows fully automated manufacturing for high-volume applications.
A rich set of internet protocols, industry-standard interfaces (USB/UART/ PCM/ ADC/ Antenna-Diversity) and abundant functions (USB drivers for Windows XP, Windows Vista, Windows 7, Windows CE, Linux, Android/eCall) extend the applicability of the module to a wide range of M2M applications such as automotive, metering, tracking systems, security solutions, routers, wireless POS, mobile computing devices, PDAs, and tablet PC.
Key benefits:
- Worldwide UMTS/ HSPA+ and GSM/ GPRS/ EDGE coverage
- Minimal SMT form factor ideal for small end products with tight space
- High-quality transmission of data and images even in hazard conditions and dark environment
- Fast time-to-market: reference designs, evaluation tools and timely technical support minimize design-in time and effort
- Equivalent noise-figure performance is archived by primary and diversity receive patches of WCDMA
- Robust mounting and interfaces
** You have to order also the UMTS & LTE EVB KIT to use this Test Board, so that needs to be ordered separately **
- Quectel Wireless Solutions product -
