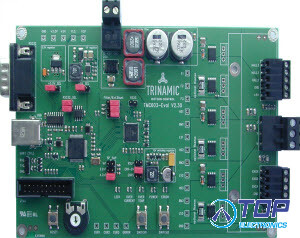

TMC603-eval, TMC603 Evaluation Board

More information

Stock
1 pcs
Delivery time
please contact us for more information
Manufacturer / supplier
Trinamic Motion Control
Datasheet
View datasheet
€ 177.39 excl VAT
Contact us Technical support Quotation request

Product specifications

TRINAMIC TMC603-eval
TMC603 Evaluation Board

The TMC603-EVAL makes it possible to evaluate all features of the TMC603 three phase motor driver including BLDC back EMF commutation hallFX™. A PC software running under Windows enables to modify the configuration for every three phase BLDC motor.

Specifications
- Motor Type
- 3-phase BLDC motor
- Sine or block commutation
- Rotor position feedback: sensorless, encoder or hall sensor

Highlights
- Up to 18.8A (IRMS) nominal motor current
- 12V to 48V operating voltage
- Integrated current measurement using power MOS transistor RDSon hallFX™ sensorless back EMF commutation emulates hall sensors
- Integrated Break-before-Make logic: No special microcontroller PWM hardware required
- EMV optimized current controlled gate drivers
- Overcurrent / Short to GND and undervoltage protection and diagnostics integrated
- Internal QGD protection: Supports latest generation of Power MOSFETs
- Integrated supply concept: Step down switching regulator
- Common rail charge pump allows for 100% PWM duty cycle
- Firmware update via USB and RS232 interface

Interface
- Communication to the PC via USB and RS232 interface
- Inputs for encoder (ABN) or 3 digital hall sensors

Related products
- TMC 603 BLDC predriver
- QMot QBL4208 BLDC motor family
- QMot QBL5704 BLDC motor family

- TRINAMIC Motion Control product -
