Product specifications

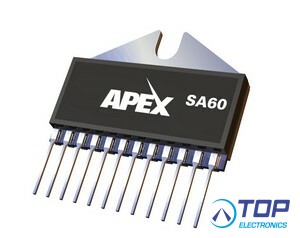

SA60 - H-Bridge Motor Driver/Amplifiers, 80V, 10A
No Longer Supported For Design In. Please see SA160DP / SA160DPA
The SA60 is a pulse width modulation amplifier that can supply 10A continuous current to the load. The full bridge amplifier can be operated over a wide range of supply voltages. All of the drive/control circuitry for the lowside and highside switches are internal to the hybrid. The PWM circuitry is internal as well, leaving the user to only provide an analog signal for the motor speed/direction, or audio signal for switchmode audio amplification. The internal PWM frequency can be programmed by an external integrator capacitor. Alternatively, the user may provide an external TTL-compatible PWM signal for simultaneous amplitude and direction control for four quadrant mode.
FEATURES
• LOW COST COMPLETE H-BRIDGE
• SELF-CONTAINED SMART LOWSIDE/HIGHSIDE DRIVE CIRCUITRY
• WIDE SUPPLY RANGE: UP TO 80V
• 10A CONTINUOUS OUTPUT
• ISOLATED CASE ALLOWS DIRECT HEATSINKING
• FOUR QUADRANT OPERATION, TORQUE CONTROL CAPABILITY
• INTERNAL/PROGRAMMABLE PWM FREQUENCY GENERATION
APPLICATIONS
• BRUSH TYPE MOTOR CONTROL
• CLASS D SWITCHMODE AMPLIFIER
• REACTIVE LOADS
• MAGNETIC COILS (MRI)
• ACTIVE MAGNETIC BEARING
• VIBRATION CANCELLING
- APEX Microtechnology product -
