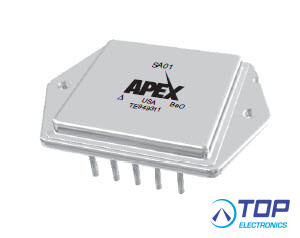

SA01, Switching Amplifier, 100V, 20A

More information

Stock
In stock
Delivery time
please contact us for more information
Part number
SA01
Manufacturer / supplier
Apex Microtechnology
Datasheet
View datasheet
Output current
> 10 A
Supply Voltage
0 - 99V
€ 493.70 excl VAT

Product specifications

SA01 - Pulse Width Modulation Amplifier, 100V, 20A

The SA01 amplifier is a pulse width modulation amplifier that can supply 2KW to the load. The full bridge output amplifier can be operated from a single power supply over a wide range of voltages. An error amplifier is included which can provide gain for the velocity control loop in brush type motor control applications. Current limit is programmable by a single resistor. A shutdown input turns off all four drivers of the H bridge output. A precision reference output is provided for use in offsetting the error amplifier. The error amplifier can then be scaled for standard input signals. The amplifier is protected from shorts to supply or ground. The H bridge output MOSFETs are protected from thermal overloads by directly sensing the temperature of the die. The 10-pin hermetic power package occupies only 2 square inches of board space and is isolated.

FEATURES
• SINGLE SUPPLY OPERATION
• WIDE SUPPLY RANGE — 16-100V
• 20A CONTINUOUS OUTPUT
• PROGRAMMABLE CURRENT LIMIT
• SHUTDOWN CONTROL
• HERMETIC PACKAGE
• 2 IN2 FOOTPRINT

APPLICATIONS
• BRUSH TYPE MOTOR CONTROL
• PELTIER CONTROL
• REACTIVE LOADS
• MAGNETIC COILS (MRI)
• ACTIVE MAGNETIC BEARING
• VIBRATION CANCELLING

- APEX Microtechnology product -

Related products

TW10

Thermal Washer, PDIP (10 per Pkg)

€ 44.40

EK01

Evaluation Kit for SA01

€ 86.45

MS04

Socket, PC Pin Receptacles, (12-Pack)

€ 27.27

HS16

Heatsink, 10-Pin Power DIP

€ 95.63
