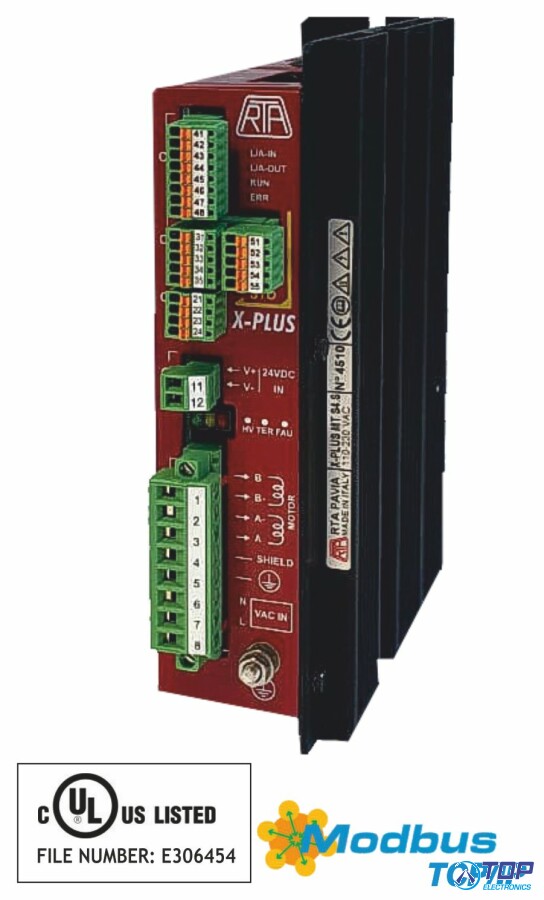

X-PLUS MT B4, Stepper drive Modbus 110-230VAC - 4A

More information

Stock
Out of stock
Delivery time
if not in stock: 1 ~ 2 weeks
Part number
X-PLUS MT B4
Manufacturer / supplier
R.T.A. Srl
Datasheet
View datasheet
€ 426.43 excl VAT
Contact us Technical support Quotation request

Product specifications

R.T.A. - X-PLUS MT B4
Stepping motor drive boxed

- New series of stepping motor drives with Modbus interface, direct input from the main AC power supply and STO function
- Direct connection from the main AC power supply (110 Vac to 230 Vac)
- Auto-Sync function available

HIGHLIGHTS
- Communication by means of Modbus TCP/IP interface
- Modes of operation: PROFILE POSITION, PROFILE VELOCITY and HOMING
- Full digital microstepping drive
- Wide range of SANYO DENKI stepping motors to be coupled with: holding torque up to 9,2 Nm and flange size up to 86 mm
- Easy setup by RTA Modbus configurator software

TECHNICAL SPECIFICATIONS
- Communications by means of Modbus TCP/IP interface
- Range of operating voltages: 110-230 Vac
- Protections:
- Protection against under-voltage and over-voltage.
- Protection against a short-circuit at motor outputs.
- Overtemperature protection with thermal sensor.
- Electronic damping facility for further acoustic noise and mechanic vibrations reduction
- External fans no needed
- UL/CSA certified
- Warranty 24 months
- Wide range of motor phase setting
- Motor current overboost
- Different variety of HOMING operation modes
- Encoder feedback
- R.T.A. product -

Related products

X-PLUS S4

Stepping motor drive 110-230VAC - 2.4-4A

€ 374.20
