Product specifications
Attend 122A-40A00

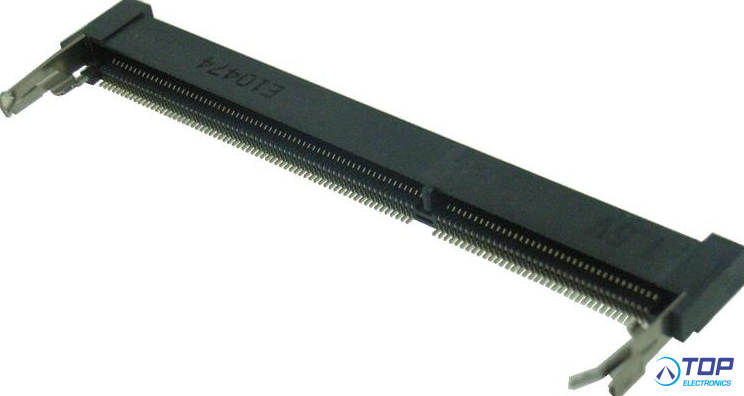

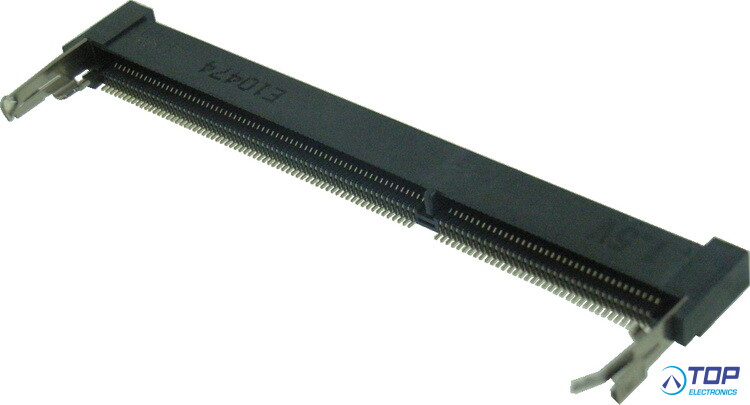

SODIMM DDR3 Socket, 1.5V, 204-pin, 4.0H, Normal Type
ELECTRICAL
Current Rating: 0.5A per pin
Voltage Rating: 25V AC/DC
Contact Resistance: 60mΩ
Insulation Resistance: 500MΩ
Dielectric Withstanding Voltage: 125VAC
MECHANICAL
Durability: 25 Cycle
Latch Retention Force: 8N/Pos. Min
ENVIRONMENTAL
Operating temperature range: -40°C~+85°C
Storage temperature range: -40°C~+85°C
SOLDER ABILITY
Recommended IR Reflow Temperature: 255°C 10Sec
- Attend Technology product -
