Product specifications
Attend 119A-70A00-R02

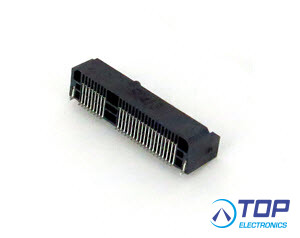

Mini PCI Express Socket H7.0mm, Stand off 7.0mm
Electrical
Current Rating: 0.3A per pin
Voltage Rating: 25VAC
Contact Resistance: 30mΩ
Insulation Resistance: 500MΩ
Dielectric Withstanding Voltage: 250VAC
Mechanical
Durability: 50 Cycle
Contact Normal Force: 50gf per pin min.
Contact Retention Force: 180gf per pin min.
Environmental
Operating Temperature: -40°C to +90°C
Storage Temperature: -40°C to +90°C
SOLDER ABILITY
Recommended IR Reflow(Wave Soldering) Temperature: 260°C
