Product specifications
SCR15VT
The SCR15VT is a RF connector suitable for RF applications.

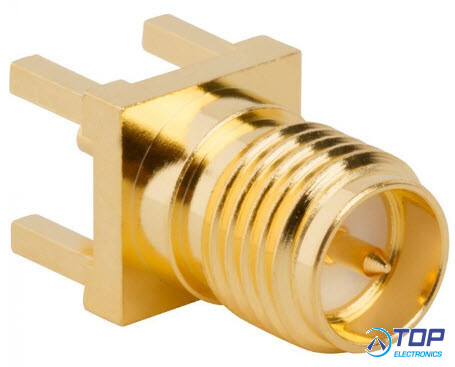

The connector is a SMA Female Reverse Polarity Straight PCB connector.
It can be used for RF connections and as antenna connector.
Mechanical Properties
Connector Type: SMA Female Jack straight
Dimensions: 13.5 x 7 x 7 mm ± 0.1
Operating Temperature Range: -55°C~+155°C
Storage Temperature Range: -55°C~+155°C
Electrical Properties
Impedance: 50 O
Frequency Range: 0 – 6GHz
VSWR: 1.5 max.
Working Voltage: 500Vrms @sea level
Insulation Resistance: 5000 O min.
