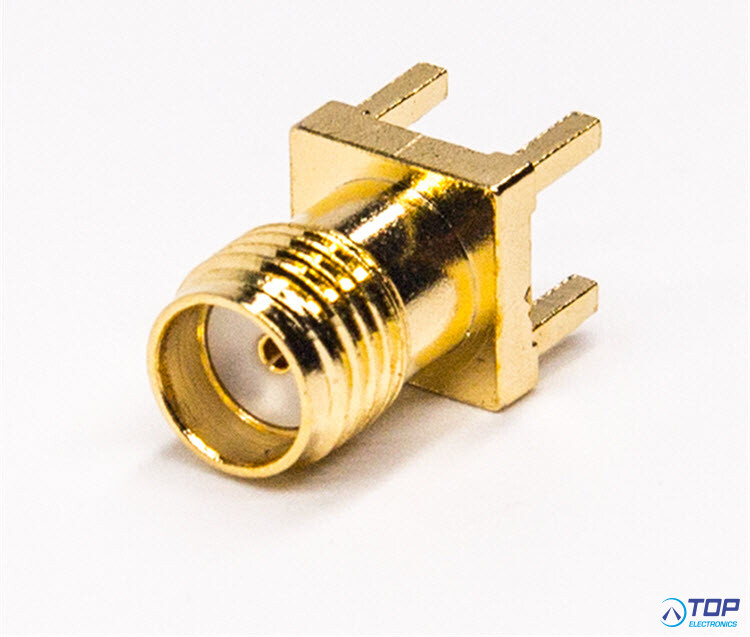

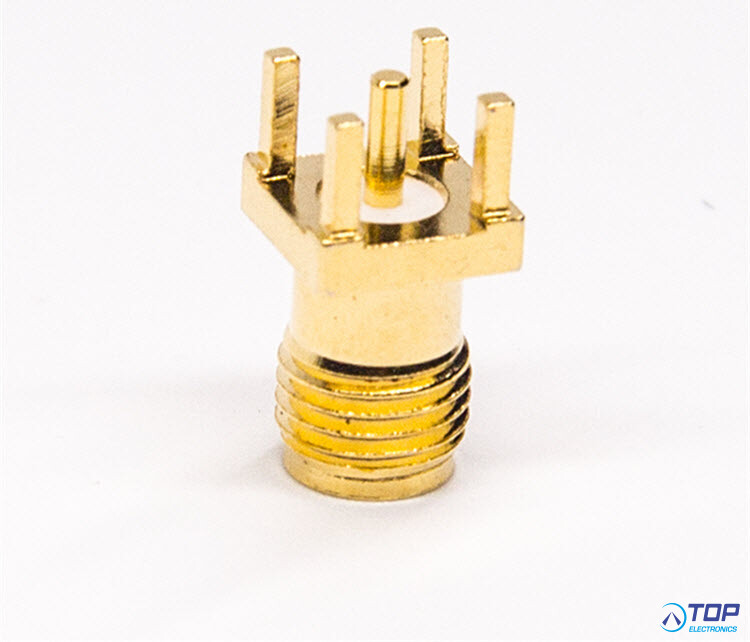

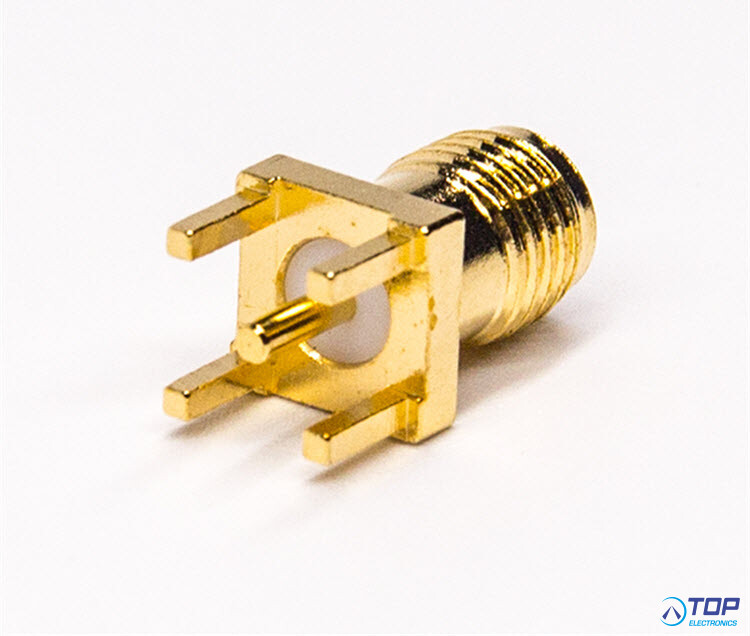

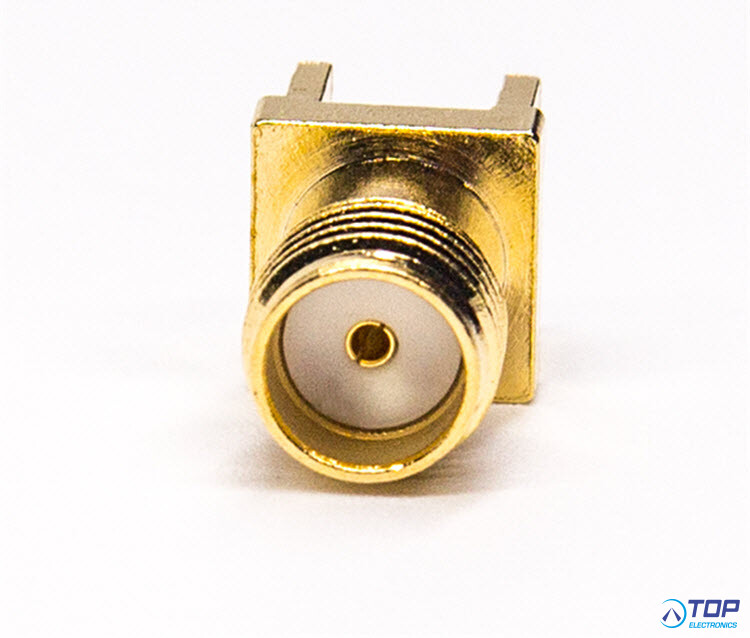

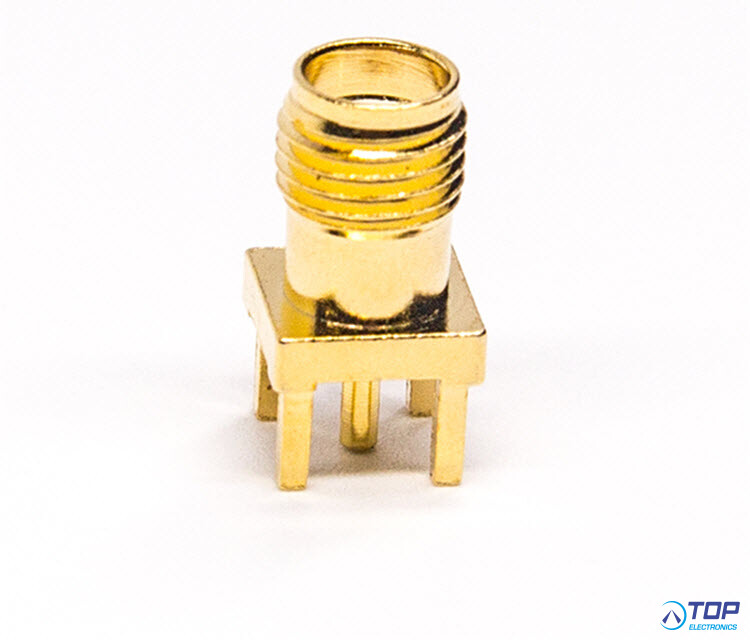

ERF6024, SMA F, PCB Mount, Straight Jack.

More information

Stock
Out of stock
Delivery time
if not in stock: 5 ~ 6 weeks
Part number
ERF6024
Manufacturer / supplier
Summit Electronics
Connectors
RF connectors - SMA
€ 1.45 excl VAT
Contact us Technical support Quotation request
ERF6024.pdf

Product specifications

ERF6024
The ERF6024 is a RF connector suitable for RF applications.
The connector is a SMA Female Straight PCB connector.
It can be used for RF connections and as antenna connector.

Mechanical Properties
Connector Type: SMA Female Jack straight
Dimensions: 13.6 x 7 x 7 mm ± 0.1
Operating Temperature Range: -55°C~+155°C
Storage Temperature Range: -55°C~+155°C

Electrical Properties
Impedance: 50 O
Frequency Range: 0 – 6GHz
VSWR: 1.5 max.
Working Voltage: 500Vrms @sea level
Insulation Resistance: 5000 O min.
