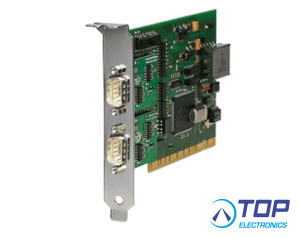

13021, Serial PCI base board, 1kV isolated

More information

Stock
Out of stock
Delivery time
if not in stock: 2 ~ 3 days
Part number
13021
Manufacturer / supplier
W&T
Datasheet
View datasheet
Specification 1
PC cards
Specification 2
Serial PC cards
€ 186.31 excl VAT
Contact us Technical support Quotation request
Quantity
Unit price
From 1 pcs€186.31

Product specifications

WuT 13011
Serial PCI base board, 1kV isolated

There are many cases where it is necessary to equip the ports of an interface card with different port models. It may for example be necessary to use COM1 as a 20mA programming interface for a PLC, as the software used only supports this port, while COM2 is connected to an RS232 terminal device.

For such requirements, W&T provides a very smart solution without any need for additional external hardware. The module concept of the serial W&T PC cards allow you to freely select the interface model, as the PC card mainboard is equipped with pluggable modules that convert the internal TTL signals into interface signals.

The combined interface cards are supplied fully configured according to your specifications and are ready for installation. You can change a built-in port at any time by simply replacing the interface module.

Interfaces:
-2x serial TTL interfaces with galvanic isolation
-2x serial TTL interfaces without galvanic isolation
-1x 32-bit PCI bus
-Universal Voltage Card for 3.3V and 5V PCI systems
-Galvanic isolation between PC, Port 1 and Port 2
-Isolation voltage 1kV

Management and connectivity:
-20mA, RS232, RS422, RS485 and profibus can be combined on one card
-4 x UART 16950 with 128-byte FIFO
-Plug-and-play: automatic configuration of base address and interrupt
-Includes drivers for Windows 9x/NT4.0/2000/XP/2003/Vista/2008/7/2008R2/8.1/2012R2/10/2016

Standards & more
-Conforms to standards both in office and industrial environments:
-High noise resistance for industrial environments
-Low noise emission for residential and business areas
-5 year guarantee

Connections and displays:
-System bus: 32-bit PCI bus / 33MHz / Universal Voltage
- Serial port: 2x galvanically isolated slots for interface modules, 2x non-isolated serial TTL ports, 12-piin header with 2mm spacing
- Operating modes: Different interface types possible
- Maximum baud rate: 460.800 baud
- Data format: any format
- Signals: RxD,TxD,RTS,CTS,DSR,DCD,DTR,RI
- Handshake: No, RTS/CTS, Xon/Xoff
- UART: 16950 with 128-byte FIFO
- Galvanic isolation: Isolation voltage min. 1kV DC, between PC and the serial ports 1 and 2
- Supply voltage: 3.3V/5V DC, 12V DC
- Current consumption: typ. 200mA @ 3.3V/5V, typ. 100mA @ 12V

Housing and other data:
- Dimensions: 134 x 120mm (W x H)
- Enclosure rating: IP00
- Weight: approx. 105g
- Ambient temperature: Storage: -40..+70°C, Operating: 0..+70°C
- Permissible relative humidity: 5..95% RH, non-condensing
- Scope of delivery: serial PCI base board, slot plate, Quick start manual, product CD with manual, German/English

- Wiesemann & Theis product -
