Product specifications
WuT 86000

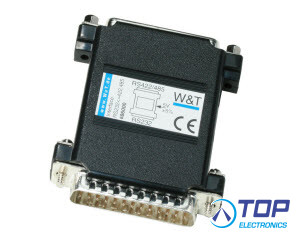

Serial Interface, RS232 <> RS422/485 Compact
The Interface connects RS232 devices to RS422 and RS485 components with minimal installation space. Both interfaces are implemented as 25-pin SUB-D connectors.
Product properties:
RS422 bi-directional, with handshake
RS485 automatic mode
No re-configuration of transmission parameters required
Compact adapter solution
Integrated termination network for RS485 operation

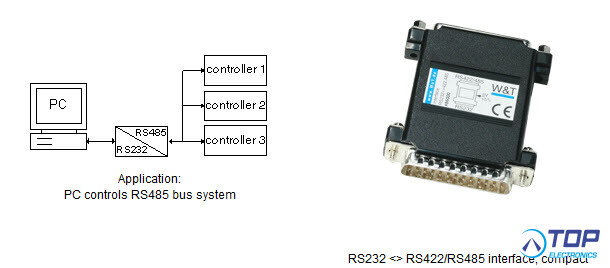

Suitable as "non-intelligent" converter for
RS485 field buses <> RS232
Conforms to standards both in office and industrial environments:
Increased noise immunity for industrial areas
Stricter noise emission for residential and commercial areas
Technical data:
Connections and displays:
- Serial Port A: RS232 Interface, 25-pin SUB-D plug, DCE assignment
- Serial Port B: RS422/RS485 interface, 25-pin SUB-D socket
- Switching time: approx. 10µs for switching from data send to receivefor RS485 automatic control
- Baud rate: 0 to 115200 Baud
- Data format: any format
- Galvanic isolation: none
- Supported signals: RxD, TxD, CTS, DTR
- Termination: Integrated termination network for RS485
- Power supply: Supplied power adapter
- Current consumption: approx. 70mA
Housing and other data:
- Housing: DBF25 dual housing, 63 x 54 x 16mm (L x W x H)
- Enclosure rating: IP40
- Weight: approx. 150g incl. power adapter
- Scope of delivery: Interface RS232<>RS422/RS485 Compact, AC adapter for office use, Gender Changer Bu/Bu, model 11770, The 11574 adapter cable for connecting the Interface to 9-pin terminals is provided at no cost. Please specify in your order.
- Wiesemann & Theis product -
