Product specifications
Attend 104D-TCA0-R06

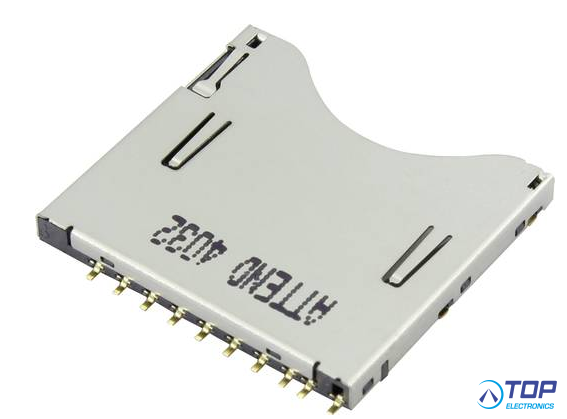

SD Socket Push-Push type, Top Mount, 10u"
INSULATOR
Plastic Body : LCP+35%GF, Color Black.
Slider : LCP+35%GF, Color Black.
CONTACT
- Contact : Phosphor Bronze Alloy (C5210R–EH)
- Switch A/C :Phosphor Bronze Alloy (C5210R–EH)
- Hold down :Phosphor Bronze Alloy (C5191R–H).
- Contact area: Gold 10 micro inches (Min.)
- Solder area: Gold flash
- All under-plated Ductile Nickel 50 micro inches (Min.)
- Switch A/C & Hold down:
- Contact area: Gold flash,Solder area: Gold flash
- All under-plated Ductile Nickel 50 micro inches (Min.)
SHELL OR COVER
Shell :SUS304R-3/4 H
Latch : SUS304R-3/4 H
Spring : Piano Wire
Drag Link : SUS304
OTHERWISE SPECIFIED
Operating Temperature: -25°C to +90°C
Storage Temperature: -40°C to +90°C
Ambient Humidity: 90%～95% R.H.
