PMACS001QI, Ruggedized Tag Qi Charger [Chirp]

More information

Stock
Out of stock
Delivery time
please contact us for more information
Part number
PMACS001QI
Manufacturer / supplier
Inpixon & Nanotron Technologies
Datasheet
View datasheet
€ 604.51 excl VAT
Contact us Technical support Quotation request

Product specifications

Durable and Wearable UWB Tag for Proximity, Blue Dot and Activity Monitoring

The Inpixon RTLS Personnel tag held between the index finger and thumb for scale.
The Inpixon Personnel Tag is a sturdy and compact ultra-wideband (UWB) RF tag that enables distance, activity, sensor and location tracking in large scaling RTLS environments with centimeter-level accuracy.

With its deployment-ready design, the Inpixon Personnel Tag reduces time-to-market and cost. Designed for business operations in indoor scenarios, the Inpixon Personnel Tag features integrated wireless charging, provides accurate location data, and two configurable location blink modes - on motion and while stationary. Both modes have a freely configurable blink interval to allow for adjustments to the required response times for movement.

The Inpixon Personnel Tag adds a high level of transparency through location awareness for location-based services. Its wireless OTA configurability makes the Inpixon Personnel Tag adaptable to support a multitude of location related use cases such as surveillance, compliance and evacuation requirements.

Technical Specifications:

Frequency Band: Channel 5, 6489.6 MHz, BW 499.2 MHz
Radio Data Rates: 6.8 Mbps
Transmit Power Density1: < -41.3 dBm/MHz
RF Sensitivity1: -93 dBm
Antenna: Integrated
Accuracy: apx. 30 cm
Operational Range2: apx. 40 m
RTLS Static Blink Rate3: configurable, 5 minutes default
RTLS Motion Blink Rate3: configurable, 0.5 seconds default
Tri-Axial Accelerometer: ± 2 g/ ± 4 g/ ± 8 g/ ± 16 g configurable, 4 g default
Accelerometer Resolution: 12 bit
Temperature Measurement Range: -30 °C to +70 °C (1 °C steps)
Temperature Measurement Accuracy: ± 0.5 °C
Power Input / Battery Charging4: Wireless Qi Charging
Battery Charging Temperature5: 0 to +35° C
Charging Duration6: 2-5 hours
Battery Life Default Settings7: apx. 16 hours
Battery Life Individual: 1 to 60 days depending on blink rate
Battery Life Default Settings7: apx. 16 hours
Battery Life Default Settings7:apx. 16 hours

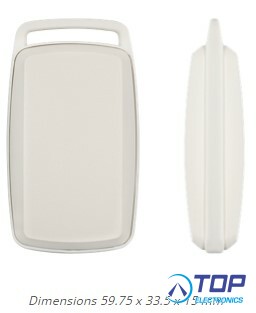

Dimensions: 59.75 × 33.5 × 15 mm
Weight: apx. 30 grams
Operating Temperature Range: -20 to +60 °C
IP Rating8: IP65
Software Compatibility: Inpixon nanoLES Location Engine
Location Protocols: Dedicated Inpixon API commands
Configuration: Over the air
Flashing (FW update): Over the air
1 Ch 5, PRF 16 MHz, Preamble 256 bits
2 Real World Line of sight
3 100 ms to max. 24 hours configurable
4 Contact your sales representative for recommendations for Qi chargers
5 Risk of damage if temperature is exceeded
6 Depending on remaining capacity and temperature
7 Default Setting: 1h blink interval if stationary and 10s blink interval if moving. Assumption: asset is 90% stationary and 10% moving
8 IP rating expires if device is opened

-- Inpixon product --
