Product specifications

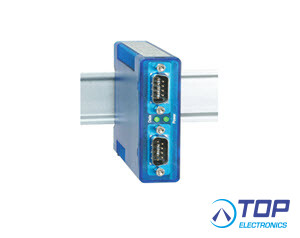

WuT 64201
RS422/RS485 <> 20mA interface, Industry
The Interface connects devices equipped with an RS422 or RS485 interface to active or passive 20mA components The built-in galvanic isolation ensures uninterrupted transmission in industrial environments.
Connections and displays:
- Serial Port A: RS422/RS485 interface, 9-pin SUB-D adapter, PC assignment
- Serial Port B: 20mA interface, 9-pin SUB-D adapter
- Switching time: approx. 10µs for changing from data sending to receiving for RS485 automatic control (can be modified on request)
- Baud rate: 0 to 19200 Baud
- Data format: any format
- Supported signals: RxD, TxD
- Termination: Connectable termination network for RS485 operation
- Galvanic isolation: Isolation voltage min. 1kV DC between all terminals
- Power supply: 12..24V DC/AC
- Current consumption: typ. 130mA @12V DC, 65mA @24V DC
- Supply voltage connection: Plug-in screw terminal, 5.08mm spacing, Labeled "L+" and "M"
- Displays: 1 LED Power, 1 LED Data
Housing and other data:
- Housing: Plastic housing for top hat rail installation, 105 x 22 x 75mm (L x W x H)
- Weight: approx. 100g
- Ambient temperature: Storage: -40..+70°C, Operating (non-adjacent installation): 0..+60°C, Operating (adjacent installation) 0..+50°C
- Permissible relative humidity: 5..95% RH (non-condensing)
- Life expectancy: > 25 years at 25°C ambient temperature
- Scope of delivery: RS422/RS485 <> 20mA interface, Industry
**Please order power supplies separately as accessories**
- Wiesemann & Theis product -
