Product specifications
WuT 88050

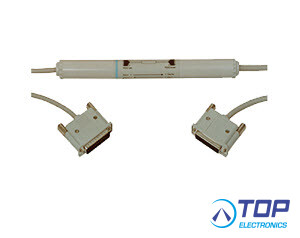

RS232 isolator, 50kV
The tubular isolator ensures galvanic isolation between two RS232 devices with an isolation voltage of min., 50kV DC and gets by completely without additional supply voltage.
Security against lightning strikes:
There is no protection against damage from lightning that hits your wiring system directly, due to the extremely high energy of the bolts. However, it is useful to protect your IT installation against damage from lightning that impacts on lines far away from your premises by using electrical isolators. An isolation of only 1kV already reliably prevents any lightning damage. With an electrical strength of 50kV, the chance for such damage is practically nil. The experience of the last few years shows that customers, who had considerable damage done to their IT devices by lightning, reported no such incidents since they had installed isolators.
Product properties:
Electrically isolated connection between two RS232 devices
Electrical isolation 50kV
integrated into the cable
No re-configuration of transmission parameters required
No separate power supply necessary
Ideal solution for the connection of medical equipment or high-voltage measuring devices to a PC
Effective lightning protection as a connecting cable
Features :
Connections and displays:
- Serial Port A: RS232 Interface, 25-pin SUB-D adapter, DCE assignment
- Serial Port B: RS232 Interface, 25-pin SUB-D socket, DTE assignment
- Baud rate: 300..9,600 baud
- Data format: any format
- Galvanic isolation: min. 50kV DC
- Supported signals: RxD, TxD
- Power supply: through the RS232 signals
- Input impedance: > 220 Ohm
Housing and other data:
- Housing: Tubular plastic housing, 250 x 20 mm ( L x D)
- Weight: approx. 340g
- Scope of delivery: RS232 isolator, 50 kV, 25-pin Gender Changer female/female
- Wiesemann & Theis product -
