Product specifications
WuT 88001

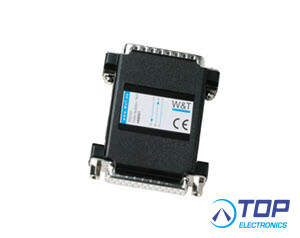

RS232 serial isolator, 1 kV
The Isolator in the compact dongle housing provides galvanic isolation between two RS232 devices with an isolation voltage of min. 1kV DC by being simply looped into the data line.
Elimination of interference:
The use of isolators in data lines eliminates the effects of interference to which the PC is otherwise subjected through its data cables (ground loops, antenna effects, potential differences), remote lightning strikes).
Electrical isolators are not to be confused with surge protectors that are often incorrectly marketed for the same purpose: Surge protectors have no effect on equalizing currents that exist between the connected devices due to the potential differences, and they cannot prevent damage to interface components by such currents.
Product properties:
Secure RS232 transmission over medium distances
Electrically isolated connection between two RS232 devices
Easy to use, true plug ’n play
No re-configuration of transmission parameters required
No separate power supply necessary
Features :
Connections and displays:
- Serial Port A: RS232 Interface, 25-pin SUB-D adapter, DCE assignment
- Serial Port B: RS232 Interface, 25-pin SUB-D socket, DTE assignment
- Baud rate: 300..19,200 baud
- Data format: any format
- Galvanic isolation: min. 1kV DC
- Supported signals: RxD, TxD
- Supply voltage: through the RS232 signals
- Required static current: approx. 2 mA @ 8V
Housing and other data:
- Housing: Plastic small housing, 63 x 54 x 16 mm (L x W x H)
- Weight: approx. 50g
- Ambient temperature: Storage: -40..+70°C, Operation: 0..+50°C
- Relative humidity: 5..95% RH (non-condensing)
- Scope of delivery: RS232 isolator, 1 kV, 25-pin Gender Changer female/female
- Wiesemann & Theis product -
