Product specifications
SRJ-8P-KS11L

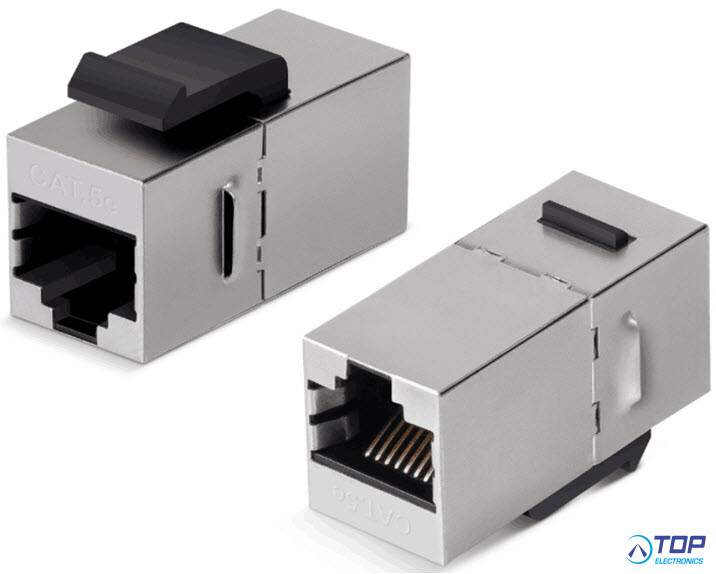

The Summit electronics Cat5e Inline Couple asily connects two patch cables to create longer links to networking devices. This
RJ45 Summit coupler is designed to fit in a wall plate, face plate or patch
panel. Its sturdy construction offers more robust housing, and phosphorbronze plated
contacts help ensure quality connections.
Material:
1.RJ45 Housing Kirsite
2.Phosphor Bronze with 50-60 micro-inch Nickel plated
3.Contact area;3-50 micro-inch Gold plated
4.PCB:FR4 UL 94V0
5.Retention Strength;7.7kgs between Jack and Plug.
6.Operatin Temperature;-40? to 80?.
7.Durability: Jack:750 cycles Plug-Jack mating and unmating test.
