Product specifications
PA168A - High Voltage Power Operational Amplifier, 200V, 12Apk
8A/12A, 200V High Density, Multi-Purpose Power Amplifier IC
The PA168A is a high voltage MOSFET operational amplifier with a monolithic amplifier core designed for high density power applications with high output currents or voltages. The device is designed for output voltages up to 205V, with the PA168A providing 8A of continuous current. Separate supplies for the amplifier core and the output stage optimize the overall power dissipation in the devices.
The PA168A offers a wide-range, temperature compensated current limit. An additional over-current flag allows for a flexible implementation of system protection, with an output disable function adding another layer of optional protection. External compensation provides the user flexibility in choosing optimum gain and bandwidth for the application.
- Low cost, monolithic IC
- High continuous output current – 8A
- High PEAK output current – 12A
- High supply voltage operation – 200V
- Internal power dissipation – 52W
- Temperature compensated current limit with over-current flag

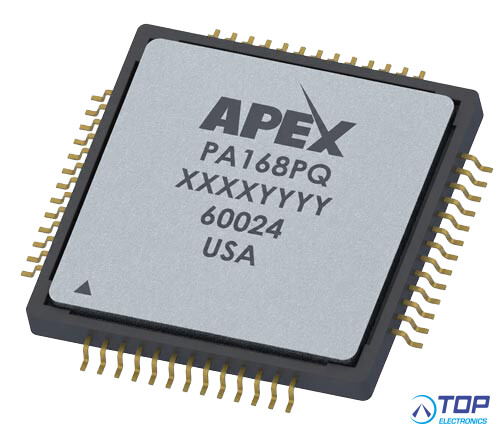

- Surface mount QFP style package with heat slug on top for efficient heat sinking of multiple devices
- APEX Microtechnology product -
