Product specifications

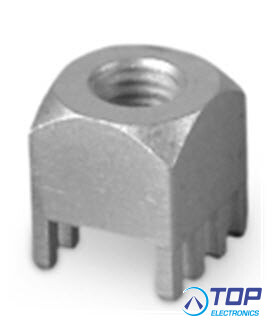

Power Element Internal Thread M5 160A
Material Brass C3604
Finish Tin Plated
Dimensions According to drawing
Thread size M5
Rated Current 160A
Tightening Torque 2.2 Nm
Drill Hole dia 1.6mm
Final Hole dia 1.475 mm
PCB thickness 1.6 - 3.2 Mm min - max
Heat Resistance -55 up to 150 °C
Retaining Force min 30N per pin As per IEC352-5
Press fit force max 250N – min 40N per pin As per IEC352-5
Weight 3.9708 Gram.
