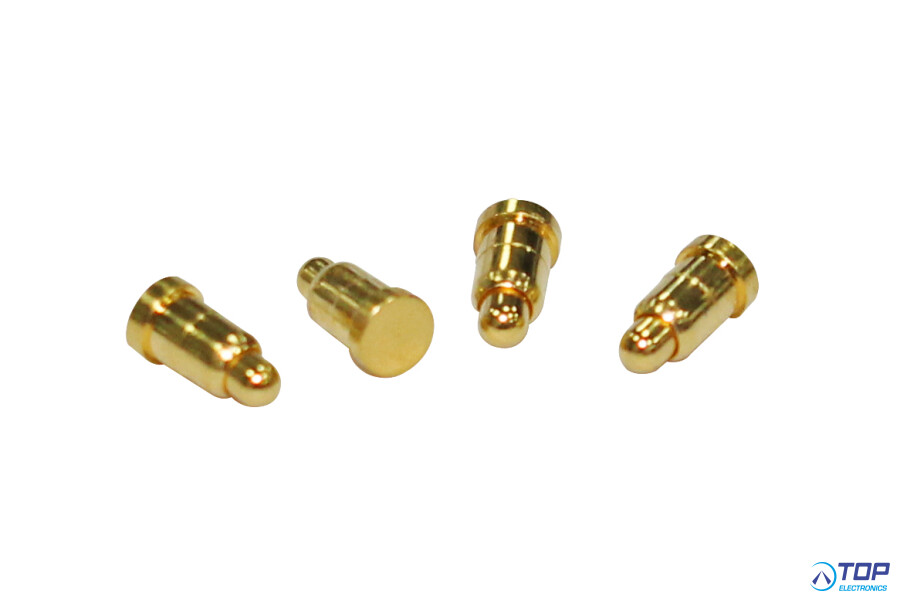

303A-250918-002, Pogo Pin Flat Type, 1Pin, T/L 3.4mm, W/H

More information

Stock
Out of stock
Delivery time
please contact us for more information
Part number
303A-250918-002
Manufacturer / supplier
Attend Technology
Datasheet
View datasheet
€ 0.60 excl VAT

Product specifications

303A-250918-002

Pogo Pin Flat Type, 1 Pin, T/L 3.4mm, W/H 2.6mm, Reel

SPECIFICATION:

ELECTRICAL

Current Rating: 1A

Voltage Rating: 12V

Contact Resistance: 50mΩ MAX. at Working Height(static state)

MECHANICAL

Durability: 10,000 Cycle

Spring Force: 110g±20% at Working Height

To avoid arcing issue, The adaptor start to power supply after connector mated fully.

To ensure the best usage, please operate it based on the working height

Based on the Drawing, shall not exceed the maximum allowed compress.

- Attend Technology product -
