World’s smallest wide angle near-range lidar sensor - Cepton
January 17, 2021

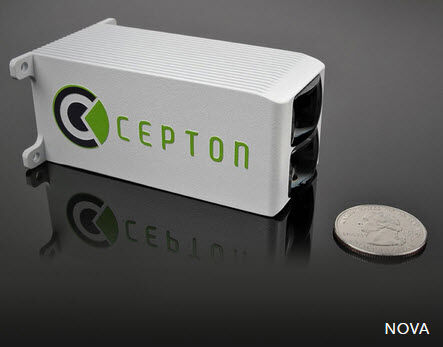

Nova is the world’s smallest wide angle near-range lidar sensor intended to address major gaps in proximity detection of objects with current sensor technologies. Featuring best-in-class, high resolution 3D imaging with a high field of view (FOV), Nova sets a benchmark with its unprecedented combination of compactness, FOV coverage and affordability.
The Nova is ideally suited for advanced driver assistant systems (ADAS), autonomous vehicles (AVs), as well as autonomous ground vehicles (AGVs) and smart industrial applications.
Key features
- Wide FOV
- Miniature & Embeddable
- High Resolution
- Manufacturable
- Auto-grade
Design
Frictionless, mirrorless, non-rotational MMT®-based modular design
Performance
Up to 30 m at 10% and 0.3° angular resolution
FOV
Up to 120° HFOV and up to 90° VFOV
Size
Miniature, light and embeddable - 3.5(W) x 3.5 (H) x 7.5 (D) cm, <0.35 kg
Reliability / FuSa
Automotive grade reliability, ISO-26262 ASIL-B
