Wi-Fi & Bluetooth smart module - SG865W-WF - Quectel

February 9, 2023

The SG865W-WF is Quectel’s new generation of flagship Android smart module. Based on Qualcomm's flagship IoT chipset QCS8250, with built-in octa-core high-performance Kryo 585 CPU, Adreno 650 GPU, Adreno 995 DPU, Adreno 665 VPU, Hexagon DSP, and Spectra 480 ISP, the module supports Wi-Fi 6, Bluetooth 5.1 and 2 × 2 Wi-Fi MIMO technology. Featuring powerful performance and rich multimedia functions, it is ideal for both industrial and consumer applications requiring high computing power, AI and multimedia functions.

A rich set of interfaces (such as LCM, camera, touch panel, I2S, PCIe, UART, USB, I2C, SPI, etc.) allow the module to serve a wide range of M2M applications, including video conference systems, live streaming devices, gaming, edge computing, robots, drones, AR/VR, intelligent retail, and security systems.

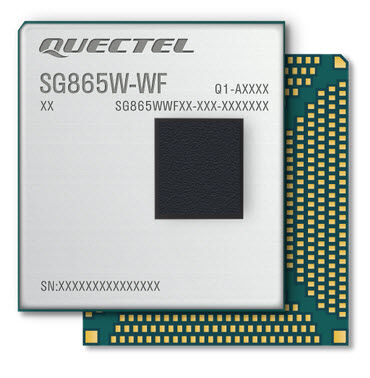

Wi-Fi & BT SG865W-WF Smart Module

  • Wi-Fi & Bluetooth smart module
  • Android 10 OS
  • LGA package
  • 46mm × 42mm × 2.95mm
  • 8GB LPDDR5 + 64GB UFS

Key Features

  • Kryo™ 585 CPU
  • Adreno™ 650 GPU
  • Hexagon™ DSP + 4 × Hexagon Vector eXtensions (HVX)
  • Spectra™ 480 ISP
  • Adreno 665 VPU
  • Adreno 995 DPU
  • Neural processing unit (NPU230)
  • Security processing unit (SPU240)
  • IEEE 802.11ax, 2 × 2 Wi-Fi MIMO
  • Bluetooth 5.1
  • Video encoder: 4K @120 fps; 8K @30 fps
  • Video decoder: 4K @240 fps; 8K @60 fps
  • Computing power of up to 15 TOPS

Contact us for more information about the Wi-Fi & BT SG865W-WF Smart Module
