The TMC2300-IOT-REF allows evaluation of the TMC2300-LA stepper motor driver - Trinamic

February 16, 2021

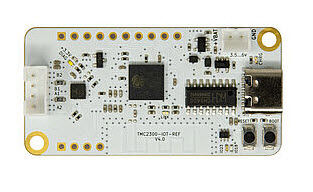

TMC2300-IOT-REF is a reference design that allows evaluation of the TMC2300-LA stepper motor driver for usage in battery-powered IoT applications.

The TMC2300-IOT-REF is a completely open-source reference design for easy evaluation of the TMC2300-LA stepper motor driver IC. Whether it’s a POS device, toys, office and home automation, or mobile medical devices,

Engineers can quickly prototype their IoT applications running on 3.5 – 6 V batteries. Besides the low-voltage stepper motor driver, the board features a Li-Ion cell charger via USB-C, a processor with integrated WiFi and BLE capabilities, as well as UART and USB-C for serial communication and programming.

Special Features

  • MicroPlyer™
  • CoolStep™
  • Stall detection
  • StealthChop2™
  • StallGuard4™

These features bring industrial-grade solutions to convenient, handheld devices.
