Piano, rotary, and slide DIP switches offer 1.27, 2.54, or 5.08 mm pitches - CUI Devices
November 24, 2020
DIP switches
Piano, Rotary, and Slide Actuator Types
CUI Devices has continued the expansion of theri DIP switches line now offering piano, rotary, and slide actuator types with 1 to 16 position options. The DIP switches further feature 1.27, 2.54, or 5.08 mm pitches and surface mount or through hole mounting styles, making them a flexible solution for a range of industrial, commercial, telecommunication, or IoT applications. Several DIP switches also carry IP67 ratings for designs dealing with moisture and environmental contaminants.
Features
- Piano, rotary, and slide actuator types
- 1 to 16 positions
- 1.27, 2.54, or 5.08 mm pitches
- SMT and through hole mounting styles
- IP67 rated models available
CUI's piano, rotary, and slide DIP switches offer 1.27, 2.54, or 5.08 mm pitches, 1 to 16 positions, and surface mount or through hole mounting styles. Featuring flat or raised actuator levels, convex or flat bottom options, short, long, or SMT pins, and gull wing or PC pin terminations, these DIP switches are a flexible option for industrial, commercial, or telecommunication applications.
The models further carry a 24 or 42 Vdc switching voltage, 42 or 50 Vdc non-switching voltage, 25 or 100 mA switching current, and 100 or 400 mA non-switching current as well as operating temperature ranges from -60 up to 125°C.
Several DIP switch models also offer IP67 ratings for dealing with moisture and environmental contaminants.
Actuator Type

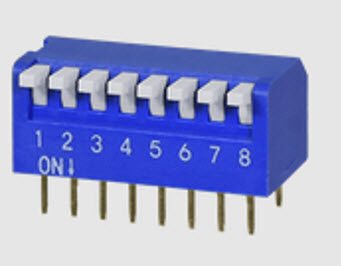

Piano

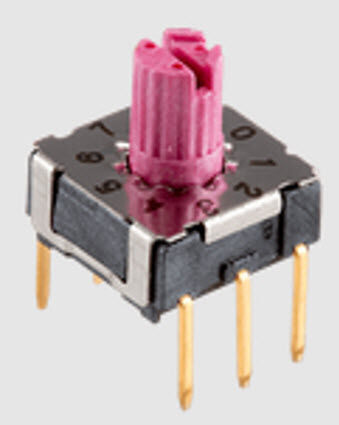

Rotary

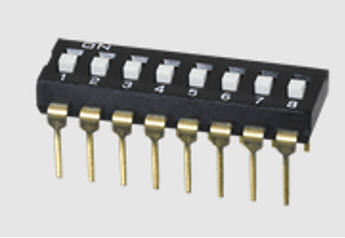

Slide
Mounting Style
SMT Through Hole
Pitch (mm)
1.27
2.54
5.08
IP Rating
IP67
