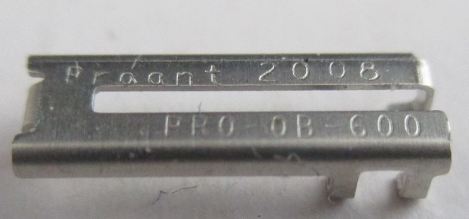

OnBoard antenna for embedded products on the 2.4GHz ISM band, suitable for applications in: Bluetooth, WLAN, WiFi, Zigbee, etc.

Proant complements the success of the OnBoard SMD 2400 with a mini variant; the OnBoard SMD 2400 Mini. The OnBoard SMD 2400 mini antenna is a combination of extremely small size, low cost and high performance suitable for applications within the 2.4GHz ISM band.

The OnBoard SMD 2400 Mini only requries 28% of the volume of its larger sibling. The ever-increasing demand for tight and lean designs, makes the OnBoard SMD 2400 Mini a great candidate for many projects.

This new antenna holds the same unique properties as any Proant OnBoard SMD antenna:

- Great frequency stability
- Omnidirectional radiation pattern
- Mixed polarity

Size: 9.9 x 3.3 x 2.0 mm

Technical data
Frequency: 2400-2500MHz
Impedance: 50 Ω
Return loss*: < -3.9dB (Estimated within simulation stage on a 47x17mm PCB)
Total efficiency*: > -5.3dB
Dimensions (LxWxH) 9.9x 3.3x 2.0mm (0.39x 0.13x 0.08in)
RoHS status: Compliant with EU directive 2011/65/ EU and 2015/863
Shelf life: 10 years
MSL: Level 1, unlimited

- IoT devices
- M2M commmunications
- Telemetry
- Automated meter reading
- Alarms
