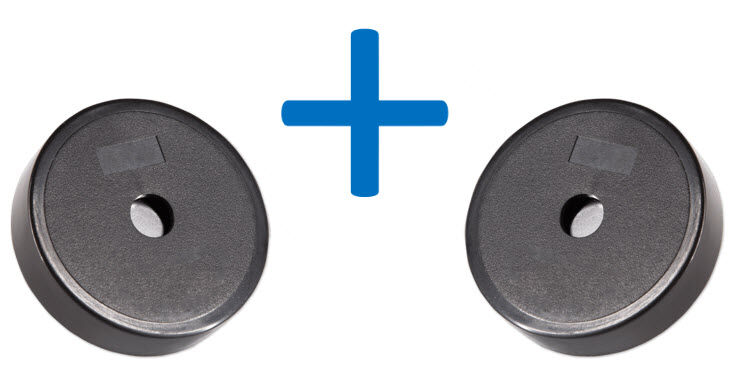

Piezo Indicator Buzzers Ideal for Medical Applications
The medical buzzers of CUI Devices are a range of piezo audio indicator buzzers compliant with the alarm signal requirements of IEC 60601-1-8.
The CPIM family produces low, medium, and high priority tones for general medical use as well as tones for specific medical applications, including ventilator, oxygen, and cardiovascular equipment. Carrying built-in driving circuits, these piezo audio indicators feature rated voltages of 5 Vdc, sound pressure levels of 90 dB at 10 cm, and rated frequencies of 4,000 Hz.
The models are housed in through hole packages with 44 mm diameters and 10.25 mm profiles.
Highlights
- Compliant with IEC 60601-1-8
- Built-in driving circuits
- SPLs of 90 dB at 10 cm
- 4,000 Hz rated frequencies
- Through hole packages
Available Medical Piezo Audio Indicator Buzzers:
CPIM-4410-80C - 44 mm, 5 Vdc, 90 dB, Through Hole, Driving Circuit, Cardiovascular Tone
CPIM-4410-80T - 44 mm, 5 Vdc, 90 dB, Through Hole, Driving Circuit, General Tone
CPIM-4410-80V - 44 mm, 5 Vdc, 90 dB, Through Hole, Driving Circuit, Ventilation Tone
CPIM-4410-80Y - 44 mm, 5 Vdc, 90 dB, Through Hole, Driving Circuit, Oxygen Tone
