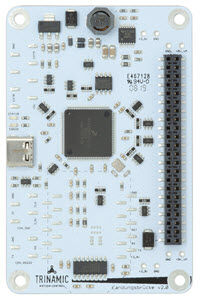

Landungsbrücke 2.0, hardware upgrade for Trinamic’s Modular Toolkit

September 12, 2019

Landungsbrücke 2.0, hardware upgrade for Trinamic’s Modular Toolkit - Trinamic introduces an upgrade to their modular evaluation system with the interface board Landungsbrücke 2.0.

The Landungsbrücke is the connection between your desktop computer and Trinamic’s Chip solutions. Just connect the desired board combination and start to discover Trinamic’s unique features.

The heart of the Landungsbrücke is a Freescale MK20 cortex M4 processor. A single firmware design covers all evaluation boards of the Trinamic evaluation system. Users can download the latest revisions, modify the firmware or create your own and easily update it via USB. The code of the Landungsbrücke is open source for download.

The modular evaluation system of Trinamic allows engineers to quickly implement and test different system designs for their application. This modular evaluation system consists of three parts: the Landungsbrücke interface board containing an NXP MK20 cortex M4 processor, the Eselsbrücke connector board, and one of the evaluation boards containing the motor control chip or motion control chip of your choice plus all components needed to drive a motor.

Configuration of the plug-and-play evaluation system is simple with the TMCL-IDE™, Trinamic’s own integrated development environment. Loaded with a wizard, code libraries, and easy to follow steps on how to tune the evaluation board, the IDE is the Rosetta Stone for engineers looking to implement industry-leading motion and motor control technology the most efficient way possible.

Together with the TMCL-IDE and the modular evaluation system, engineers don’t have to be experienced in motion control to experience the best motion control there is, and embed it easily into their application. Simply connect a computer with the USB-C port on the new Landungsbrücke interface board and open up TMCL-IDE to set the IC parameters. Once tuned in the IDE, the settings can be exported as TMCL-PC, or C++ for direct use in your own firmware.

To make the system fit for a whole new range of motors, the second generation of the Landungsbrücke interface board is being upgraded to a maximum supply voltage of 70V. By doing so, Trinamic opens the door to popular motion control technologies such as StealthChop™, StallGuard™, and CoolStep™, as well as advanced ramping profiles and FOC to a whole new range of cyber-physical systems.
