Incremental Encoder supporting shaft diameters from 9 mm to 15.875 mm - CUI Devices
December 2, 2022

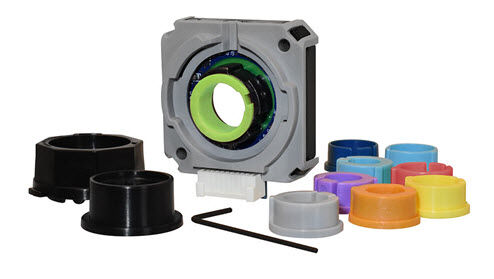

CUI Devices’ AMT13A incremental encoder is a rugged, high accuracy series featuring 16 resolutions from 96 to 4096 PPR, while supporting nine shaft diameters from 9 mm to 15.875 mm. With an innovative capacitive platform, the series is not susceptible to contaminants such as dirt, dust, and oil that are commonly found in industrial environments.
Combined with an operating temperature range of -40°C to +125°C, high accuracy, a compact package, and low current draw, the AMT13A offers a solution for a range of industrial, automation, robotics, and renewable energy applications.
Features of the AMT13A Incremental Encoder
| 16 resolutions up to 4096 PPR |
| Quadrature A, B |
| Resilient to dust, dirt and oil |
| High accuracy |
| Low current draw |
| Modular locking hub design for simple assembly |
| Compact design |
| -40 to +125°C temperature range |
Options
| Differential line driver |
Specifications
| Type | Description |
|---|---|
| Input Voltage (Vdc) | 4.5 ~ 5.5 |
| Shaft (Bore) Ø (mm) | 10, 11, 12, 12.7, 13, 14, 15, 15.875, 9 |
| Operating Temp. (°C) | -40 ~ 125 |
| Speed, Max. (RPM) | 4000, 8000 |
| Output Type | CMOS Voltage, Quadrature Line Driver |
