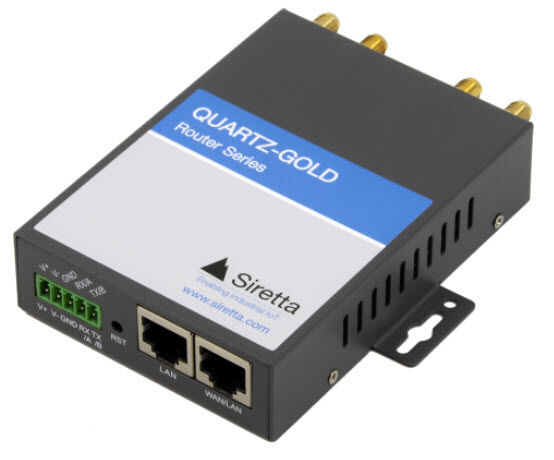

The QUARTZ-GOLD router is a high speed dual port gigabit ethernet industrial router designed for transferring large amounts of data via the LTE cellular network. The QUARTZ-GOLD’s fast data transfer capability reaches up to 150Mbps download and up to 50Mbps upload speed. It also has fall-back to 3G/UMTS communication, should 4G/LTE be unavailable. It is well suited for IoT mobile broadband applications, offering reliable, secure wireless connectivity.

The QUARTZ-GOLD router has a robust design, encased in a small sized, metal enclosure, making it ideal for deployment in industrial embedded applications. The QUARTZ-GOLD software supports a number of high end VPN security protocols allowing the router to be used in commercial as well as industrial applications securely and reliably.

The QUARTZ-GOLD router meets many of the needs for management of remote systems and communication channels and therefore has applications in renewable energy, security, digital signage, transport, street furniture, traffic control, parking systems, environmental monitoring, and many other IoT mobile broadband applications.

The QUARTZ-GOLD router comes as standard with a single SIM slot, dual port gigabit ethernet capability and 2.4GHz and 5GHz Wifi. It also has GPS capability which means the router is ideal for asset tracking applications and access management.

In addition the QUARTZ-GOLD supports RS232 or RS485 serial connectivity to connect remote equipment to a central resource using the Siretta LinkCONNECT TCP/IP serial gateway service. This service offering also allows you to interact directly to the cellular engine to automate notifications such as SMS alarm triggered alerts. It also allows your connected equipment to interrogate the connections status, signal strength and network parameters directly which can allow remote systems to run autonomously in the field.

• European 4G / LTE bands
• High speed data via LTE Cat 4 network
• 2.4Ghz & 5GHz dual WiFi support
• Complies to EN61000-6-2 Standards
• Strong resistance to electromagnetic interference
• Built-in watch dog, multi-link detection
• Compact industrial design
• Excellent temperature endurance
• VPN: OpenVPN, PPTP, L2TP, GRE, IPSec
• GPS
• 2 x GbE Local LAN (Router Mode)
• 1 x GbE Local LAN & 1 x GbE Remote WAN (Backup Mode)

*Full GNSS Constellation available upon request subject to MOQ Requirements
