Ethernet Switch Gigabit Industry PoE - W&T

June 19, 2024

Gigabit networking in control cabinet with 4x PoE+ - 55624 - W&T

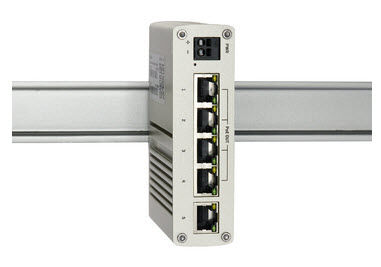

The compact industrial switch connects up to four network components in the control cabinet with up to one gigabit data rate.

The switch is supplied with 9-30V via a plug-in terminal and delivers max. 60W over Power over Ethernet. It has 5 Ethernet ports 10/100/1000Mbps BaseT of which 4x PoE+ 802.3af connections, max. 30W per port.

  • Robust aluminum housing for mounting on DIN rail
  • Operating temperature range -40 - 75°C
  • Housing protection class IP30
  • Industrial DC clamp connection 9-30V DC
