Circular 4” and 5” TFT Modules, featuring IPS technology - Yeebo

October 19, 2023

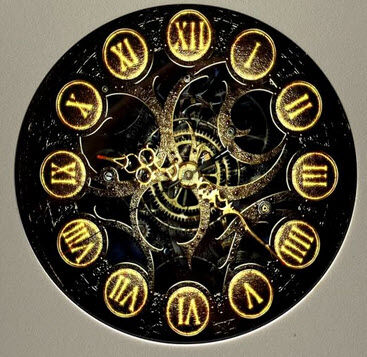

These 4″ and 5″ circular TFT modules are ideally suitable for automotive / E-Bike, Marine and General Instrumentation. Both models feature IPS technology, having high contrast / luminosity and all round viewing angles. Interface is MIPI-DSI or we can supply a HDMI converter. Or we can offer a CAN bus protocol. Either model is available with capacitive touch panels. Smaller circular displays are available on request.

General Specification of the 4” YB-TG720720S02A-N-A0
Module Size 105.4 (W) * 109.67 (H) * 2.02 (T) mm
Module Size (with FPC) 105.4 (W) * 146.26 (H) * 2.02 (T) mm
Display Size (Diagonal) 4.0 inch
Display Format 720(RGB)*720 Pixels
Active Area 101.52(H) ×101.52(V)
Pixel Pitch 0.141(H) mm*0.141 (V) mm
LCD Type TFT (16.7M)/ Transmissive / NB
The Best Viewing Direction FREE
Controller IC ICNL9707


General Specification of the 5” YB-TG10801080S01A-N-A0
Module Size 132.208 (W) * 136.531 (H) * 1.98 (T) mm
Module Size(With FPC) 132.208 (W) * 182.371(H) * 1.98(T) mm
Display Size(Diagonal) 5 inch
Display Format 1080(RGB) *1080 Pixels
Active Area 127.008 (W) *127.008 (H) mm
Pixel Pitch 0.1176*0.1176mm
LCD Type 16.7M Color / Transmissive / Normal Black
View Direction Free
Controller IC HX8399-C

More information about the Circular 4” and 5” TFT Modules, contact us.
