The FSP3000-20HM is a redundant power supply module based on the CRPS standard. It offers a total power capacity of up to 3000 watts and supports PMBus functionality, enabling communication with the motherboard.

Additionally, this power supply is an ideal choice for data centers, workstations, communication systems, and various automation applications. The product also complies with the latest safety and EMC standards, ensuring full compliance with global regulations.


GENERAL SPECIFICATIONS

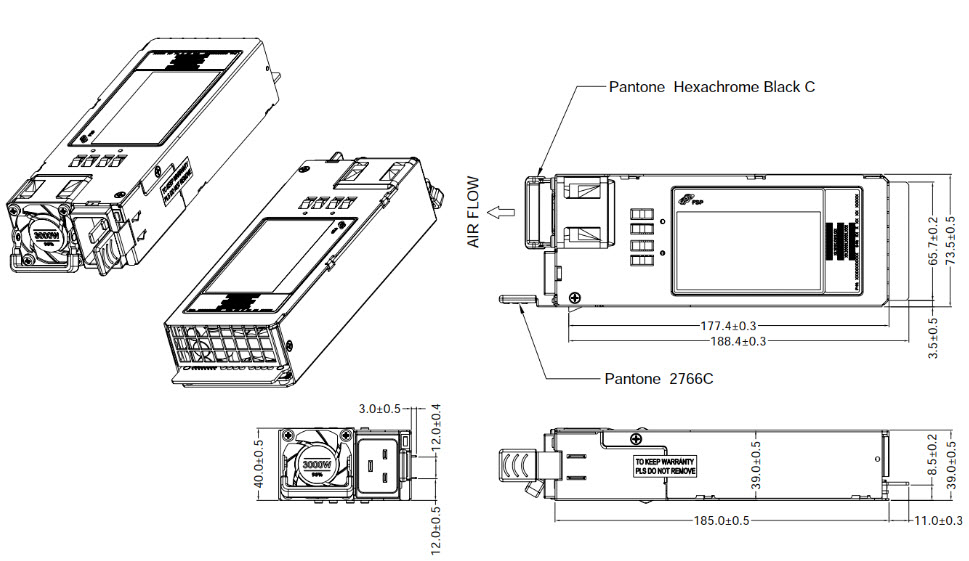

• Dimension (L x W x H): 185 x 73.5 x 39 (mm)
• Environment 7.28 x 2.89 x 1.53 (inch)

• Working temperature: 0°C to 55°C
• Storage temperature: -40°C to + 70°C

• Efficiency: 80 Plus Titanium
• Working humidity: 5% to 90% RH non-condensing

• Storage humidity: 5% to 95% RH non-condensing
• Hold-up time: Max. load at 12V >10ms

• MTBF (SR-332 Issue 2): 250,000 hours of continuous operation at 55°C, 75% output load
• Operating altitude: 5,000 meters above sea level

Applications: Storage System , Workstation, Industry Controller


INPUT SPECIFICATIONS

Input voltage: 90-264Vac or 180Vdc-310Vdc
Input frequency: 47-63Hz



OUTPUT RATING

Outputs	Input Voltage	Min. Current	Max. Current	CLST Peak 20 Sec. duration	CLST Peak 10m Sec. duration	Pmax Peak 100μ Sec. duration
+12V	90~140V	1A	82A	-	-	-
+12V	220~264V	1A	246A	Rated +10A	Rated +72A	Rated +105A
+12Vsb	90~264V	0A	3.0A	3.5A	NA	NA
