7 PCB integrated Niche antennas, all highly efficient, space saving antennas - ProAnt
July 2, 2019

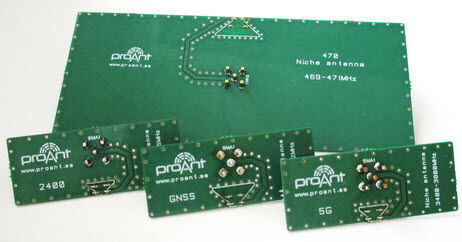

ProAnt proudly present a family of seven PCB integrated antennas using the Niche concept (a ProAnt patented technology). They are miniature PCB integrated antennas, all highly efficient, space saving and very low-cost antenna solution.
The Niche antennas can be placed along any of the PCB edges, used for multiple operations:
> 2.4 GHz
> WLAN 2.4 / 5 GHz
> GNSS
> NB-IoT
> NB-IoT / GSM / UMTS / LTE
> 868-915 MHz
> 3.4 - 3.8 GHz (5G)
Contact TOP-electronics for placement advice and GND cutout drawing
Datasheets
Small PCB embedded antenna for use on the 2.4GHz ISM bands, suitable for applications in Bluetooth, WLAN, WiFi, Zigbee etc.
A miniature PCB integrated antenna, covering the GNSS frequencies 1559 MHz (Galileo), 1575 MHz (GPS) and 1602 MHz (Glonass).
Small PCB embedded antenna for use on the 2.4GHz and 5GHz ISM bands, suitable for applications in Bluetooth, WLAN, WiFi, Zigbee etc.
A miniature PCB integrated antenna covering the 5G frequencies 3,4 - 3.8 GHz
A miniature PCB integrated antenna covering the 868MHz and 915MHz ISM bands (868-928MHz)
A miniature PCB integrated antenna optimized for covering the IoT band 8 and 20 (791 - 960MHz)
Niche TM NB-IoT / GSM / UMTS / LTE antenna
A miniature PCB integrated antenna optimized for covering the IoT band 8 and 20 (791 - 960MHz) as well as the GSM (1710 - 1990MHz) and the UMTS / LTE (1990-2170 MHz) bands.
