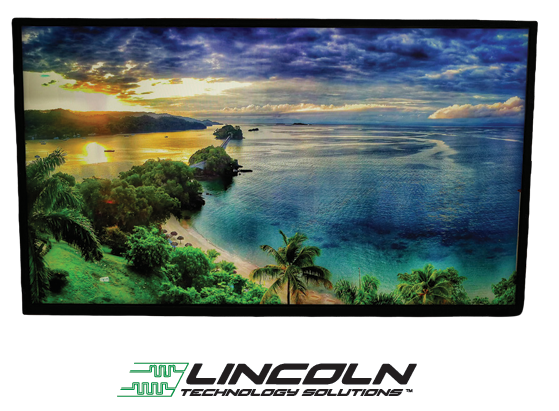

32-inch 4K Mini-LED FALD display - Lincoln

32-inch 4K Mini-LED Full-Array Local Dimming display with 3200-zone architecture

A teaser preview of the LCD363, a 32-inch 4K Mini-LED Full-Array Local Dimming (FALD) display platform engineered for high-performance visual systems.

Designed to elevate contrast control, luminance performance, and color fidelity, LCD363 marks LTS’s expansion into high-zone Mini-LED backlight architectures optimized for precision-driven applications, including medical imaging, surgical visualization, pathology viewing, and HDR broadcast production workflows.

Precision illumination. Controlled performance.

Designed to bring your product to life with LCD363, a 31.5” 4K Mini-LED display featuring 3200-zone Full Array Local Dimming (FALD), 1500 nits brightness, and 98% DCI-P3 color gamut. Enjoy deep contrast and wide color fidelity in sunlight-readable clarity—all in a sleek, space-saving form factor.

The high-density Mini-LED backlight is designed to dynamically manages illumination across thousands of zones to deliver:

  • Deep black-level performance
  • Reduced halo artifacts or blooming through precise zone control with advanced Chip-on-Board (COB) technology
  • Preserved shadow detail in mixed scenes
  • Stable brightness across the panel
  • Wide color reproduction for advanced imaging
  • Fewer driver ICs for simplified architecture with the Scanning LED driving technology
  • Thinner and lighter module construction

This optimized architecture enables improved thermal management, reduced electrical complexity, and a compact mechanical profile suitable for space-constrained system integration. Designed as a scalable platform, the architecture supports future performance tiers and application-specific configurations.

Preliminary technical specifications (engineering sample)

Specification Value
Model LCD363
Display Size 31.5″ (32″ class)
Resolution 3840 × 2160 (4K UHD)
Backlight Technology Mini-LED Full-Array Local Dimming
Dimming Zones / LEDs 3200 / 12,800
Peak Brightness* Target up to 1500 nits
Contrast Ratio* Target up to 1,000,000:1
Color Gamut* 98% DCI-P3 coverage
Bit Depth 10-bit (1.07B colors)
Luminance Uniformity* Target ≥ 90% (9-point measurement)
Module Design COB + Scanning LED Drive
Form Factor Slim, space-efficient architecture

*Performance values represent engineering targets and preliminary lab measurements. Final production specifications may vary.

The current 32″ FALD unit in demonstration represents an early engineering sample. Certain performance parameters are undergoing continued optimization and validation as part of the development roadmap. LTS is collaborating with select OEM partners during this early phase to refine performance characteristics for production readiness.

Designed for demanding environments

The 32″ FALD is being developed with:

  • High-zone Mini-LED backlight control for precise luminance management
  • Best-in-class architecture to improve uniformity and reduce blooming
  • Adaptable to professional I/O integration & Compatible to industry leading SOMs
  • Long-operational reliability considerations for medical and broadcast use

This launch signals LTS’s strategic expansion into high-performance Mini-LED display solutions serving mission-critical applications.

Want to know more about the 32″ Mini-LED FALD? Let's connect!
